Navigate to Machine Monitor

RXA0126813-UN-12JUN12

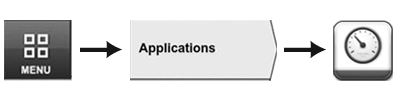

Menu → Applications Tab → Machine Monitor Icon

RXA0126814-UN-12JUN12

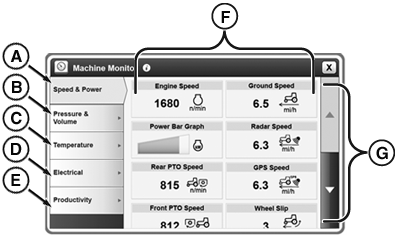

Machine Monitor Page

A - Speed & Power Tab

B - Pressure & Volume Tab

C - Temperature Tab

D - Electrical Tab

E - Productivity Tab

F - Machine Monitor Measurement Display

G - Scroll Bar

1. Select Menu.

2. Select Applications tab.

3. Symbol Select “Machine Monitor”.
