Check Transmission/Hydraulic System Oil Level - 6175R to 6215R

LX1053343
LX1053343-UN-21DEC11

Without Additional Oil Reservoir

LX1046201
LX1046201-UN-13JUL11

With Additional Oil Reservoira

LX1057324
LX1057324-UN-25OCT13

A - Max. Mark

B - Min. Mark

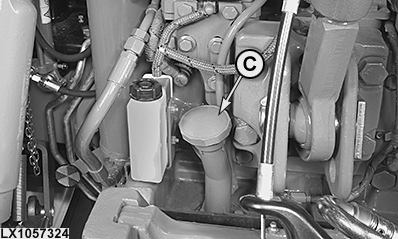

C - Filler Neck

IMPORTANT: Check oil level when oil is cold. If possible, check the oil level in the morning after the tractor has been standing overnight.

  1. Park tractor so that it is level.

  2. Engage park lock.

  3. Lower draft links, front loader, front implements, and other implements that draw oil from the transmission.

  4. Oil level should be between marks (A) and (B) on the sight glass. If it is not, add more oil at filler neck (C).
