Check the Fuel Filters

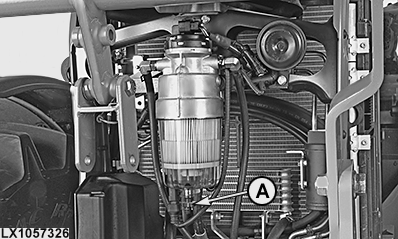

LX1057326-UN-25OCT13

Fuel Filter at Front, Version 1

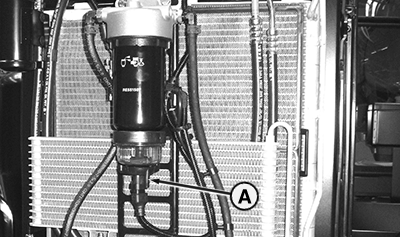

LX266980-UN-06OCT16

Fuel Filter at Front, Version 2

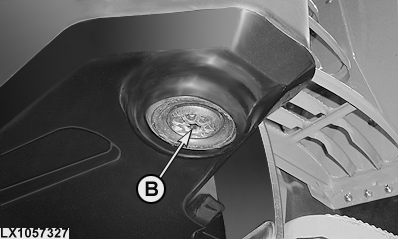

LX1057327-UN-25OCT13

A - Drain Screw

B - Drain Plug (Tank)

If water or sediment deposits have settled in filter, proceed as follows:

1. Open drain screw (A) by 3/4 of a turn. Retighten the screw as soon as water and sediment deposits have drained out.

2. Turn key in ignition switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 40 seconds.

If water was present in the fuel filter, then use a 1/2-inch square-section key to unscrew the drain plug (B) under the fuel tank by turning it once. After draining off any water and sediment deposits, tighten drain plug until finger-tight.
