Front Loader Mounting Frame for Loaders H360 and H380

CC203805-UN-15JUL13

Hardware used on John Deere™ Front Loader - Mounting Frames
Item	Designation	Standard	Dimensions	Identification / Grade	Coating
(A)	Cap Screw with Flange	JDS121	M20 x 2.5 x 70	10.9	Zinc
(B)	Hex Nut with Flange	ISO4161	M20 x 2.5	10	Zinc
(C)	Hex Nut with Flange	ISO4161	M20 x 2.5	10	Zinc

IMPORTANT: A front loader checked and approved by John Deere™ is available for purchase.

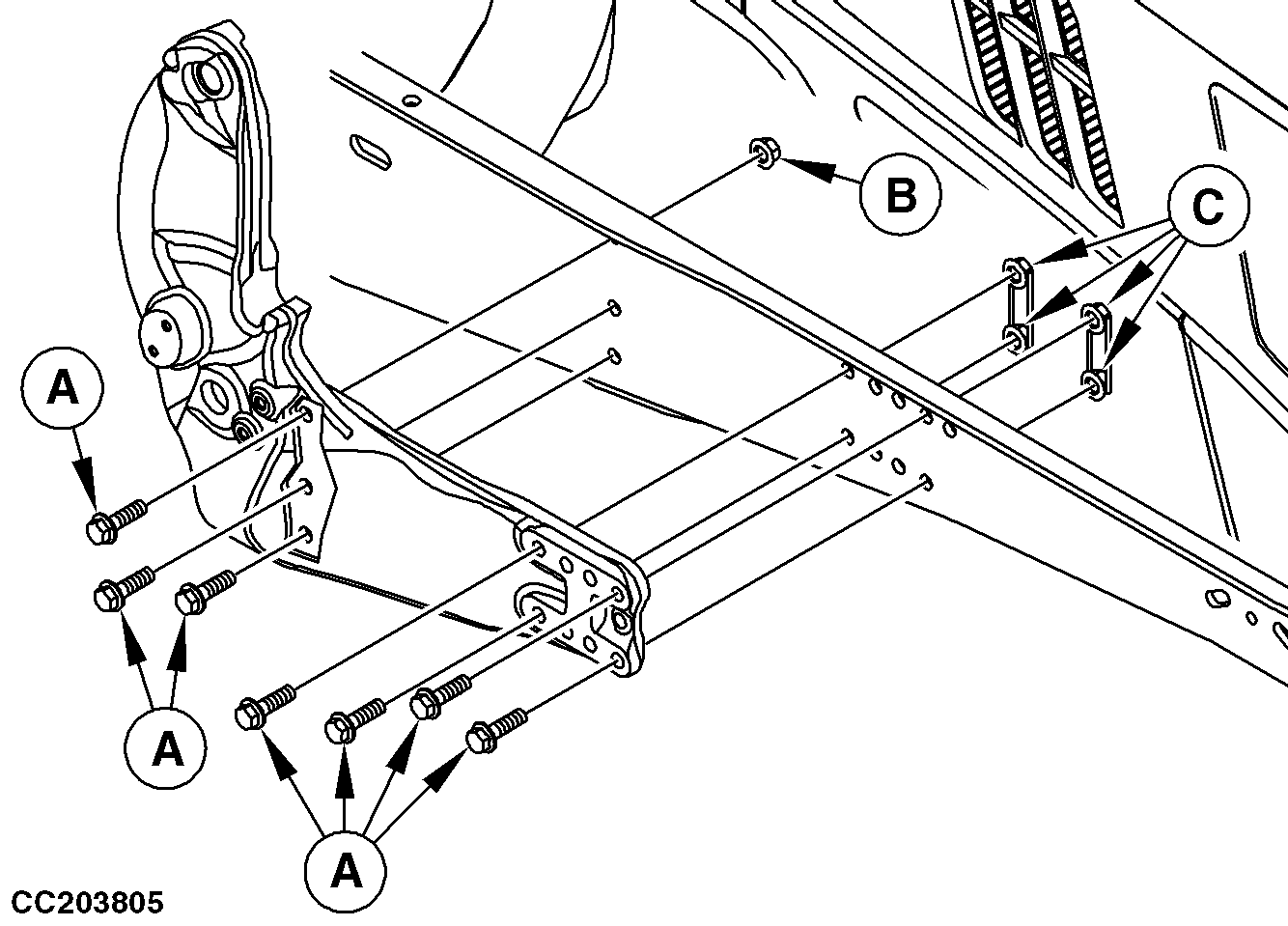

When installing the John Deere™ front loader mounting frames, use only suitable attaching elements as shown in the illustration above.

Check torques of attaching screws at regular intervals. Comply with Operator's Manual and Installation Instructions for maintaining the front loader.

Item	Measurement	Specification
Cap Screw with Flange	Torque	620 N·m (457 lb-ft)
