Access diagnostic trouble codes

RXA0133360-UN-26JUL13

Menu button → System → Diagnostics Icon → Diagnostic Trouble Codes

RXA0133359-UN-26JUL13

RXA0133361-UN-26JUL13

NOTE: If, after the remedy measures have been completed and the power supply has been restored, or after the solution has been accepted in the CommandCenter™, the diagnostic trouble code reappears, contact an authorized dealer.

1. Press the menu button.

2. Select System and confirm.

3. Press the Diagnostics Center icons.

4. Select the Trouble Codes tab.

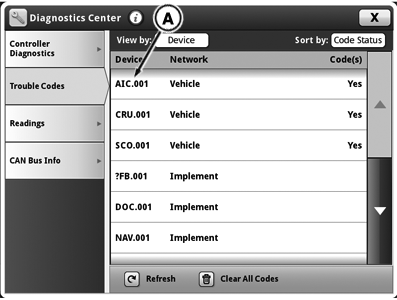

5. Select desired control unit (A).

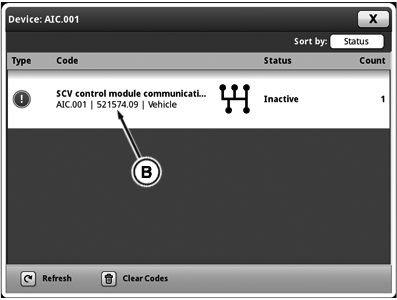

6. Select diagnostic trouble code (B) to call up the code.
