EasyGuide Center Link (if equipped)

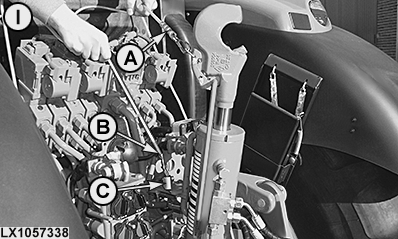

LX1057338-UN-13NOV13

I - Actuation from within Cab

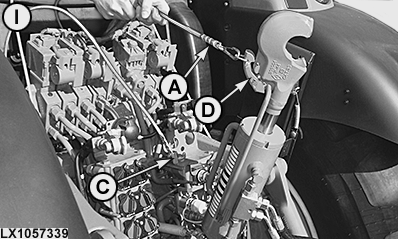

LX1057339-UN-13NOV13

I - Actuation from within Cab

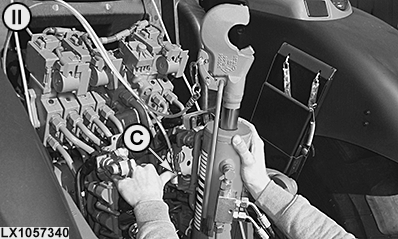

LX1057340-UN-13NOV13

H - Actuation from ground

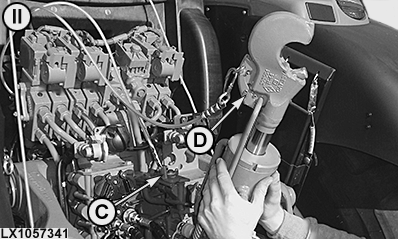

LX1057341-UN-13NOV13

H - Actuation from ground

A - Cable (Center Link)

B - Cable (Locking Pawl)

C - Locking Pawl (Bracket)

D - Locking Pawl (Center Link)

EasyGuide Center Link is a system that enables the user to engage and disengage the hydraulic center link from the cab and from the ground.

IMPORTANT: Caution, the center link is heavy and can damage other components if it falls.

IMPORTANT: Make sure that the hydraulic center link is always retracted completely after the work has been completed and is latched in at the locking pawl (C) of the center link bracket.

I - EasyGuide center link, operation from the cab

1. To this end, tighten the center link with the cable (A) and keep it tensioned.

2. With the cable (B), unlock the locking pawl (C). With two hands, correctly position the center link with the cable (A) and let it latch in at the implement.

   IMPORTANT: Make sure that the center link has been installed correctly and the locking pawl (D) has latched in.

3. To remove the center link from the implement, lower the implement, unlock the locking pawl (D) from cable (A) with both hands, tighten the center link and latch it into the locking pawl (C) of the center link bracket.

II - EasyGuide center link, operation from the ground

1. To do so, press the center link into the center link bracket and unlock the locking pawl (C).

2. With both hands, correctly position the center link and let it latch in at the implement.

   IMPORTANT: Make sure that the center link has been installed correctly and the locking pawl (D) has latched in.

3. To remove the center link from the implement, lower the implement and unlock the locking pawl (D). With both hands, let the center link latch it into the locking pawl (C) of the center link bracket.
