STOP, Service Alert, and Information Indicators

NOTE:

RXA0133357-UN-26JUL13

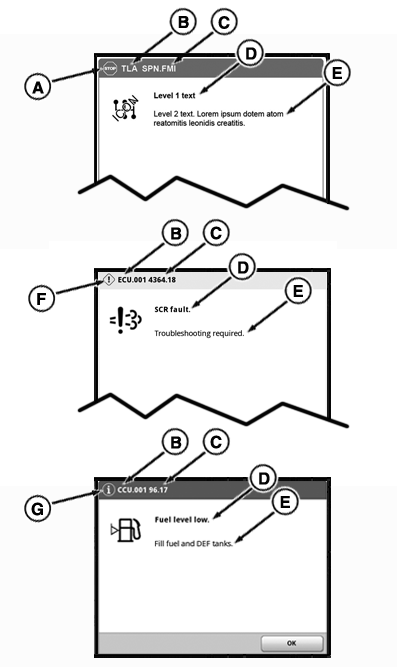

Diagnostic Trouble Codes

A - STOP Indicator

B - Control Unit

C - Diagnostic Trouble Code

D - System

E - Solution

F - Service Alert Indicator

G - Information Indicator

STOP Indicator (A): The light flashes and an uninterrupted alarm signal sounds. A serious malfunction has occurred, requiring immediate attention or the tractor will be damaged. Control unit (B), diagnostic trouble code (C), system (D) and solution (E) are displayed at the CommandCenter™. If the control unit detects a malfunction or a status “out of the permissible range”, a diagnostic code consisting of the control unit and a number appears. The numbers to the left of the decimal point show the malfunction and the numbers to the left of the decimal point show the status.

IMPORTANT: Engine will shut off automatically if STOP signal is received when operator is out of the seat for longer than 3 seconds and the transmission control is in park position. CommandCenter™ display can be reset by switching the ignition switch off and back on again.

If situation allows to stop operations immediately, reduce engine speed to idle, then shut off engine and turn ignition on to observe CommandCenter™ display for problem identification and solution. The saved codes might have to be called up; see the section on using diagnostics, saved codes and CAN statistics. Correct problem before restarting the engine.

Use the solution displayed at the CommandCenter™ or visit an authorized dealer if the problem cannot be solved.

When either a service alert or information is displayed, switch the transmission to the park position and shut down the engine.

Service Alert Indicator (F): The light flashes and the alarm signal sounds five times and indicates a performance problem or malfunction that has to be eliminated as soon as possible. Continued operations during a service alert can result in the STOP indicator lighting up. If appropriate corrective action is not taken soon (serviced, repaired, operated in a different manner), a significant reduction in performance and/or machine damage to will occur.

Information Indicator (G): Light comes on continuously and alarm sounds for 2 seconds, indicating a fault condition. Tractor operations can be continued without damage; but, performance of some functions may be impaired.

Operating in a different manner may correct and clear the "out-of-range" condition. When the Service Alert or Information Indicator is displayed, it might - in some cases - be possible to “acknowledge” and delete it with the button for confirming the CommandARM™ controls. If the condition persists, the diagnostic trouble code may reappear later.
