Home Page Premium Radio USB (If Equipped)

RXA0132530-UN-28JUN13

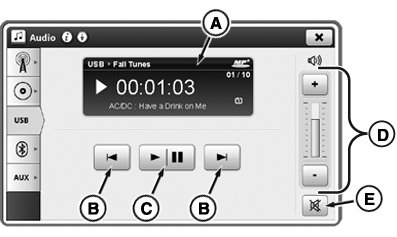

USB Home Page

NOTE: Refer to Select Radio Source with Generation 4 CommandCenter™ in this section of this Operator’s Manual, to learn how to navigate to USB home page.

Connect USB using USB port, located on right-hand console/storage tray, to play stored music. For more information, refer to External Sources—Using Premium Radio page in that section of this Operator’s Manual.

A—Display Area:Displays current USB activity/information.

B—Next/Previous Track: Skip back to beginning or ahead to beginning of next track. Press previous button twice to skip to previous track.

C—Play/Pause: Play or pause track.

D—Volume Controls: Adjust volume.

E—Mute: Mute sound.
