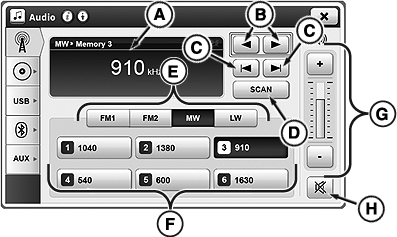

FM, MW, LW Home Page

RXA0132528-UN-28JUN13

FM, MW, LW Home Page

NOTE: Refer to Select Radio Source with Generation 4 CommandCenter™ in this section of this Operator’s Manual, to learn how to navigate to FM/MW/LW home page.

A—Display Area:Displays the current radio activity/information.

B—Manually Seek Forward/Back:Select to manually seek to next available station. Each time button is pressed, radio frequency increases or decreases by standard increment.

C—Next/Previous Station: Select to find the next available station before or after the current station.

D – “Scan” Button: Select to scan through all available stations. Each station is played for 5 seconds before the radio switches to the next station. Cycle will end if returns to original station or by selecting button again.

E—FM/LW/MW Button Bar: Cycle through channel presets using toggle bar (FM1, FM2, MW, LW).

F—Presets: Six presets can be programmed to FM1, FM2, MW and LW banks. To change FM1, FM2, MW and LW presets, press preset for 3 seconds, while on desired station, until “beep” sounds. Press again to tune radio to saved station.

G—Volume Adjustment: Adjust volume.

H—Mute: Mute sound.
