Home Page Premium Bluetooth® (If Equipped)

RXA0132549-UN-28JUN13

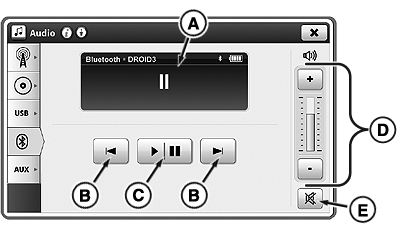

Bluetooth® Home Page

NOTE: Refer to Select Radio Source with Generation 4 CommandCenter™ page, in this section of this Operator’s Manual, to learn how to navigate to Bluetooth® home page.

Connect Bluetooth® enabled device to play stored music.

Radio system is equipped with Bluetooth®, which allows data transfer between radio system and paired close-range Bluetooth® device such as cell phone. Music stored on device does not transfer to CommandCenter™

A—Display Area:Displays current Bluetooth® activity/information.

B—Next/Previous Track: Skip back to beginning or ahead to beginning of next track. Press previous button twice to skip to previous track.

C—Play/Pause: Play or pause track.

NOTE: Not all devices support pause function. Devices may mute sound, but not pause play.

D—Volume Adjustment: Adjust volume.

E—Mute: Mute sound.
