Select Radio Source with Generation 4 CommandCenter™

RXA0133718-UN-16JUL13

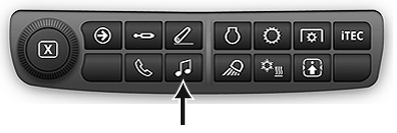

Audio Shortcut Button on Navigation Bar

RXA0147929-UN-13APR15

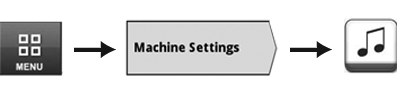

Menu → Machine Settings Tab → Radio Icon

RXA0132527-UN-17MAY13

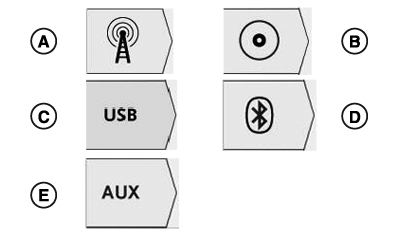

"Source Selection" Tabs

A - FM, MW, and LW Tab

B - CD/MP3 Tab (Premium Radio Only)

C - USB Tab (Premium Radio Only)

D - Bluetooth® Audio Tab (Premium Radio Only)

E - AUX Tab

Use radio source tabs on Generation 4 CommandCenter™ to select radio source.

When radio is on, radio page navigates to home page of current source selected. When radio is off, content blocker displays.

NOTE: Selecting radio source will not turn radio on. Switch the radio on by pressing the On/Off switch on the radio faceplate.

To access audio main page, use Audio Shortcut Button on Navigation Bar or follow alternative path:

1. Select Menu.
2. Select Machine Settings tab.
3. Select Audio icon.
4. Select desired radio source.
