ComfortCommand™ Seat

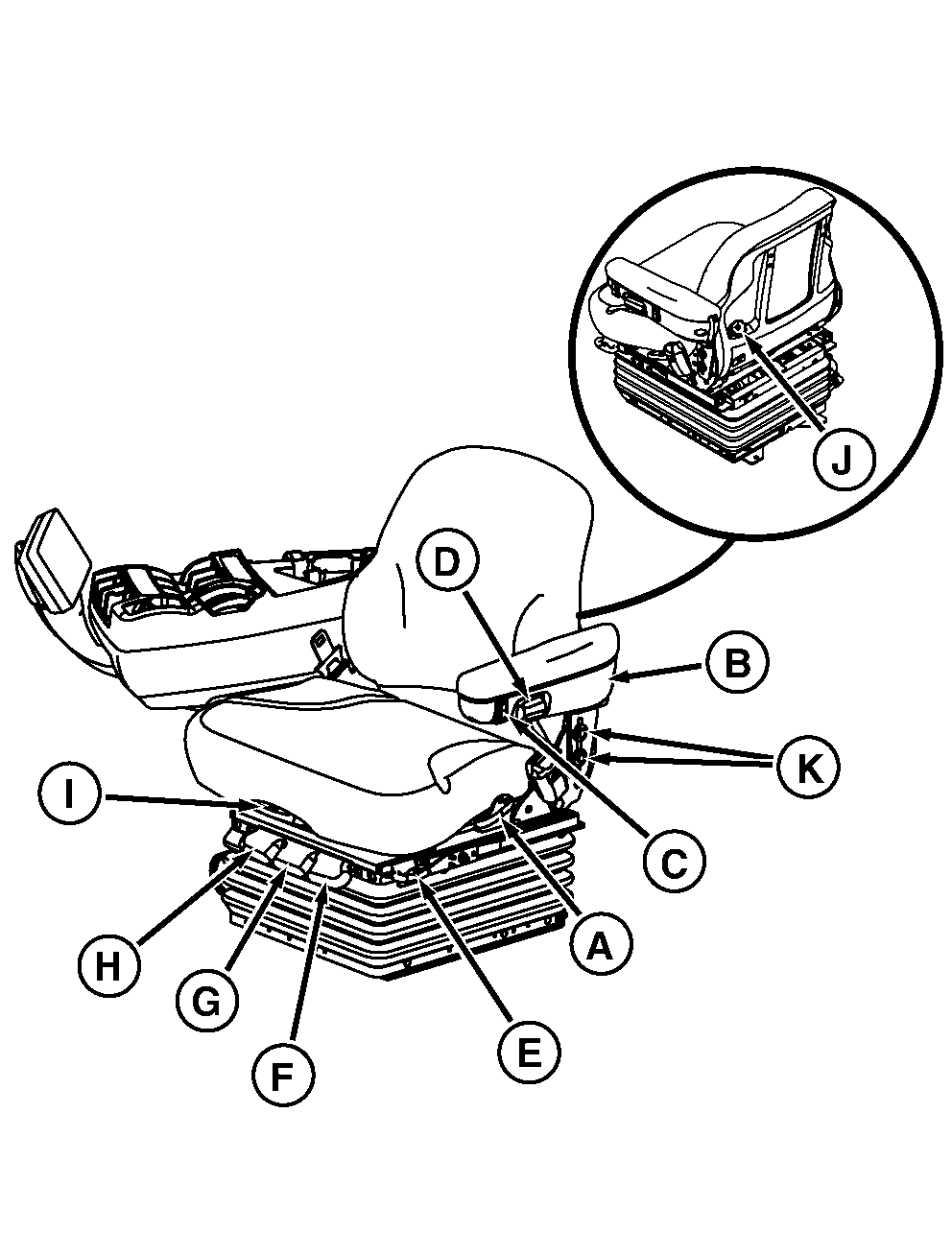

RXA0116841-UN-18MAY11

CAUTION: Adjust the seat only when the tractor is stationary.

IMPORTANT: When adjusting the seat, there is a danger of crushing. Objects placed in the cab may limit free space. Make sure that there is sufficient distance to adjacent components to prevent collisions. Accidental contact with the controls could cause the tractor or implement to operate.

IMPORTANT: As a rule, when driving the tractor, align and lock the operator's seat in direction of travel.

• A — Adjust tilt of backrest

  Pull lever (A) and hold. Tilt the angle of the backrest to the desired position and let the lever latch back in audibly.

• B — Folding armrest

• C — Height adjustment

  Any height can be selected. To adjust height, pull switch (C) up or push it down.

• D — Adjust tilt of armrest

  Knob (D) allows armrest tilt to be adjusted (infinitely variable).

• E — Fore/aft adjustment

  Pull handle (E) and move the seat to the desired position. Let the handle click into place.

• F — Adjust fore/aft suspension
  • Press handle (F) down - No fore/aft suspension
  • Pull handle (F) up - Fore/aft suspension active

• G — Adjust lateral suspension
  • Press handle (G) down - Lateral suspension active
  • Pull handle (G) up - No lateral suspension

• H — Adjust vibration damper

  Moving handle to farthest down position provides the firmest ride; farthest up position provides softest ride.

• I — Adjust swivel

  IMPORTANT: Use the swivel to the left only for entering and exiting.

  The seat swivel is operated by means of handle (I) as follows:

  Pulling the handle up allows the seat to turn freely to left and right. To lock, press the handle down and seat snaps into place automatically at the next detent.

  NOTE: If equipped with CommandArm™ or multi-function lever on the armrest, swivel the operator's seat to the left by only one detent position. Avoid collisions with the steering wheel.

• J — Adjust lumbar support on backrest

  The knob allows the firmness of the lumbar support to be adjusted (infinitely variable).

• K — Adjust height of armrest

  Loosen cap screws to slide armrest up or down. Tighten cap screws to 24 Nm (18 lb.-ft.).
