Lighting System - Overview of the Lights

LX1057399-UN-19MAR14

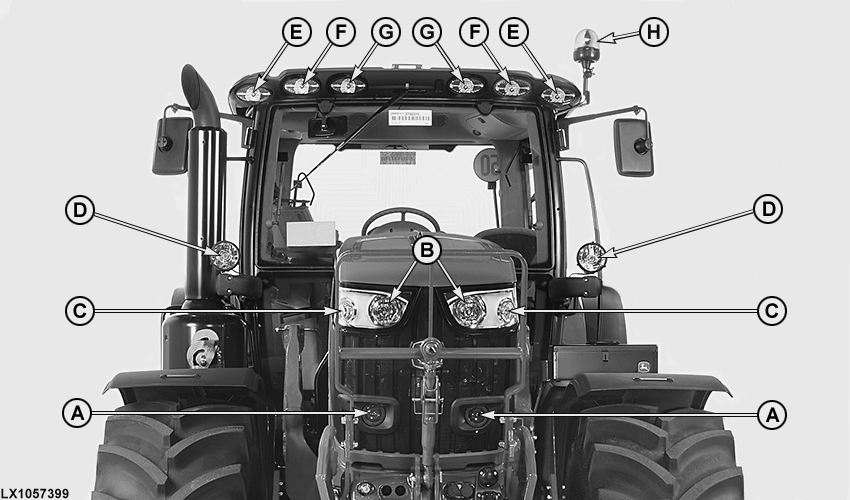

A	Headlights (Low Beam)	E	Amber Turn-Signal and Hazard-Warning Lights (on Front of Roof, Both Sides, Outer)
B	Headlights (High Beam)	F	Worklights1 (on Front of Roof, Both Sides, Center)
C	Worklights1	G	Worklights1 (on Front of Roof, Both Sides, Inner)
D	Additional Headlight1 (Low and High Beam) or Worklight1 (on Both Sides of Cab Frame)	H	Beacon Light1

IMPORTANT: Use hazard warning lights when driving on public roads.

When the right turn-signal light is activated, the right turn-signal light flashes and the left turn-signal light shines continuously.

When the left turn-signal light is activated, the left turn-signal light flashes and the right turn-signal light shines continuously.

NOTE: NO type H9 bulbs may be used in the worklights (C) in the front corner.

LX1057400-UN-05FEB14

LX1057397-UN-05FEB14

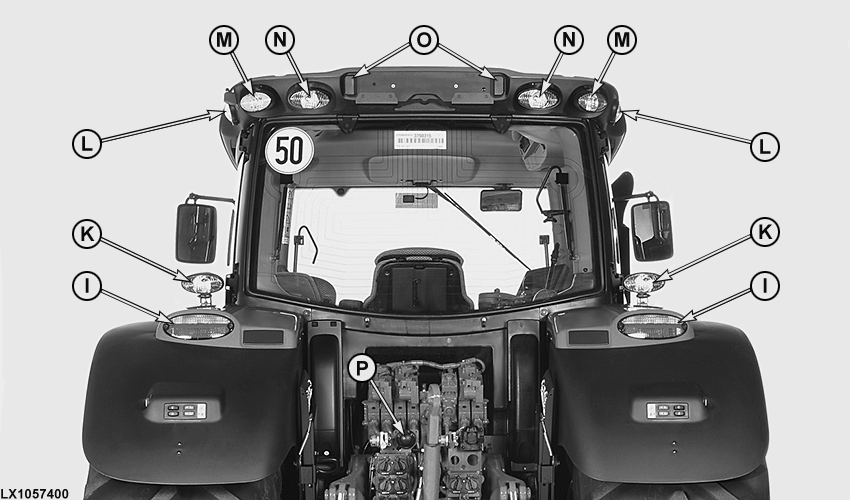

I	Red Tail Lights/Brake Lights and Amber Turn-Signal Light (on Rear of Fenders, Both Sides)
K	Worklights1 (on Rear of Fenders, Both Sides)
L	Worklights1 (on Rear of Roof, Both Sides, Side-Facing)
M	Amber Turn-Signal and Hazard-Warning Lights (on Rear of Roof, Both Sides, Outer)
N	Worklights1 (on Rear Inner Roof, Both Sides)
O	License Plate Light
P	Seven-Terminal Trailer Socket for Lights

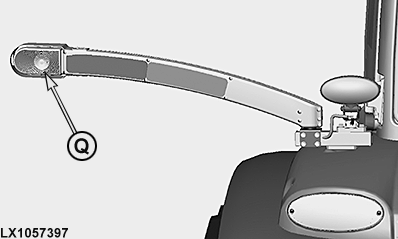

Q	Extra-Wide Vehicle Lighting1, Both Sides (Hazard Warning Light)

IMPORTANT: Use hazard warning lights when driving on public roads.

When the right turn-signal light is activated, the right turn-signal lights on the roof and on the fender flash. The left turn-signal light on the roof shines continuously and the left turn-signal light on the fender remains off.

When the left turn-signal light is activated, the left turn-signal lights on the roof and on the fender flash. The right turn-signal light on the roof shines continuously and the right turn-signal light on the fender remains off.
