Rear PTO — Connect an Implement

LX1037194-UN-11OCT05

CAUTION: Shut off engine and disengage PTO before attaching PTO-driven equipment.

CAUTION: High-inertia implements do not come to a standstill the moment the PTO is shifted to the disengaged position. Do NOT approach the implement while it is coasting down. Do not work on the implement until it has stopped.

CAUTION: Before attempting to clean, adjust or lubricate a PTO-driven machine, the three-point hitch or the drive shaft, always make sure the PTO is switched off, the tractor engine is shut off and the ignition key is removed.

IMPORTANT: See relevant operating instructions in this section.

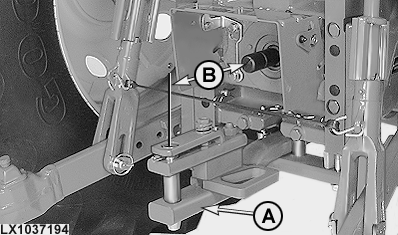

1. Align drawbar (A) parallel to PTO shaft and lock it in position.
2. Distance (B) between the end of the PTO shaft and the hole in the drawbar end varies depending on which type of PTO stub shaft is used. The distance must be correct.

   PTO stub shaft	Distance to drawbar
   	CAT II	CAT III
   Type 1 / 6 Splines..............	350 mm (13.8 in.)	350 mm (13.8 in.)
   Type 2 / 21 Splines..............	400 mm (15.7 in.)*	400 mm (15.7 in.)
   Type 3 / 20 Splines..............	—	500 mm (19.7 in.)
   * Not on tractors with AutoPowr™ or DirectDrive transmission

If PTO splines are not aligned with the grooves in the drive shaft, keep the engine shut off and select N window on the PTO page at the CommandCenter™. Then turn the PTO shaft manually to the correct position.
