Tighten Wheel Bolts and Wheel Weights

Tighten front-wheel retaining bolts (on front axles without front-wheel drive)

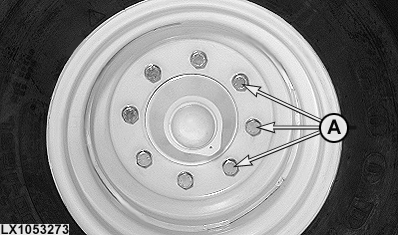

LX1053273-UN-14SEP11

A - 310 N·m (230 lb.-ft.)

Tighten front wheel retaining bolts/nuts (with front-wheel drive axles)

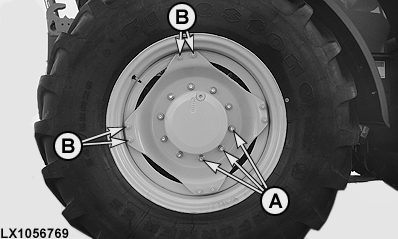

LX1056769-UN-12NOV12

On 6145R and 6155R Only

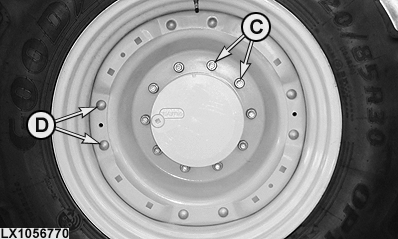

LX1056770-UN-12NOV12

On 6175R to 6215R Only

A - 480 Nm (355 lb.-ft.)

B - 210 Nm (155 lb.-ft.)

C - 480 Nm (355 lb.-ft.)

D - 310 Nm (230 lb.-ft.)

Tighten rear-wheel retaining bolts/nuts (with flanged axles) (if equipped)

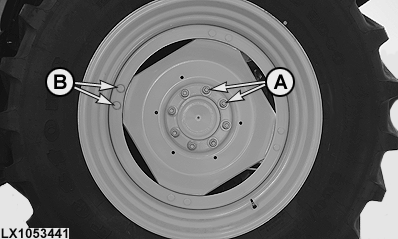

LX1053441-UN-21MAR12

Wheel with Square Dish - 6155RH

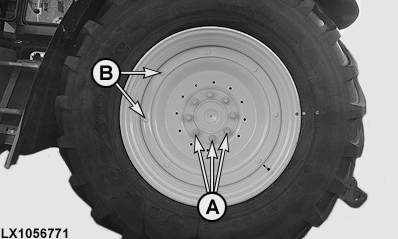

LX1056771-UN-12NOV12

Wheel with Round Dish - 6155RH

A - 500 Nm (370 lb.-ft.)

B - 210 Nm (155 lb.-ft.)

Tighten rear-wheel retaining bolts/nuts (with rack-and-pinion axles)

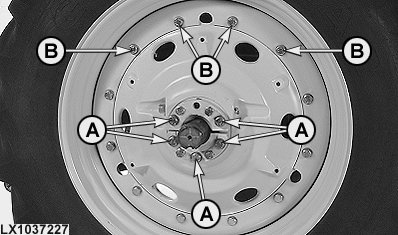

LX1037227-UN-02NOV05

Cast Hub with Cast Dish, on 6145R to 6215R

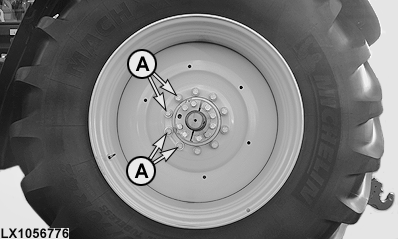

LX1056776-UN-13NOV12

Cast Hub with Steel Dish, on 6175R to 6215R Only

A - 600 Nm (445 lb.-ft.)

B - 600 Nm (445 lb.-ft.)

Tighten screws of wheel weights

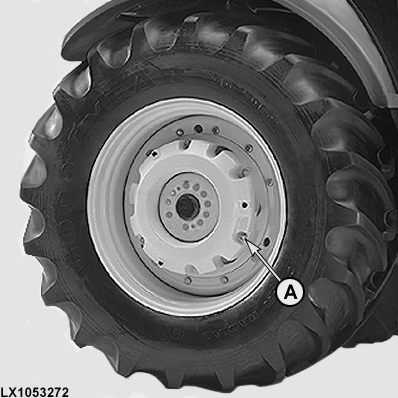

LX1053272-UN-19SEP11

• A - M16 Cap Screws, 310 N·m (230 lb.-ft.)
• A - M20 Cap Screws, 610 N·m (450 lb.-ft.)
