Selective Control Valves, Electronic - Setting the Responsiveness

LX1057413-UN-26JUN14

The characteristic of the reactions of the SCVs to commands from the controls can be changed by altering the flow rate of the SCVs. This has an effect on the entire responsiveness of the SCVs.

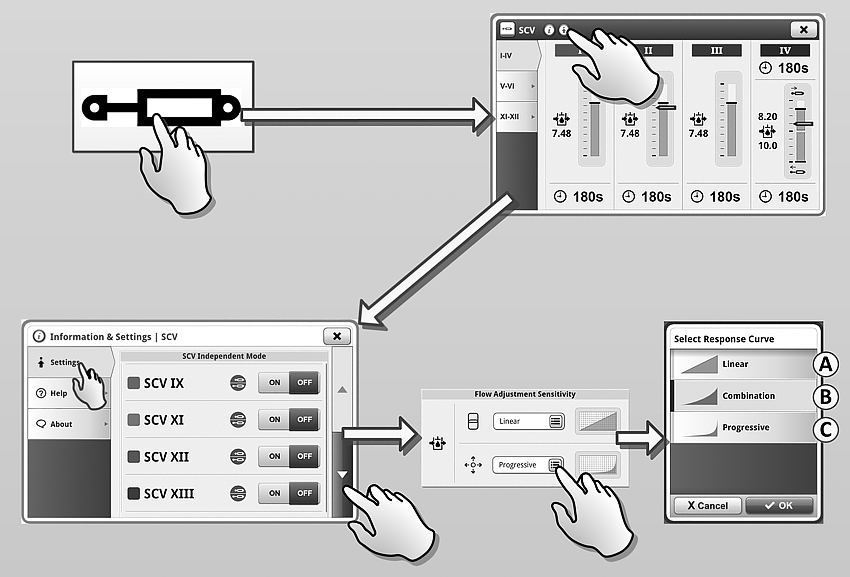

Navigate to the settings as shown in the graphic.

Select desired characteristic:

A - Linear means that the flow rate of the SCV corresponds to the distance travelled by the control lever / multi-function lever
B - Combination means that initially the flow rate of the SCV is less than that travelled by the control lever / multi-function lever (giving a sensitive start to the movement)
C - Progressive means that initially the flow rate of the SCV is much less than that travelled by the control lever / multi-function lever (giving an even more sensitive start to the movement)

Confirm setting with the OK button.
