Multi-Function Lever, Electrical — Layout and Functions

LX211115
LX211115-UN-05MAY14

IMPORTANT: The return-to-position function can be stopped by moving the multi-function lever briefly in the opposite direction. Example: Stop the boom while it is moving downward = Move the multi-function lever to the rear (A).

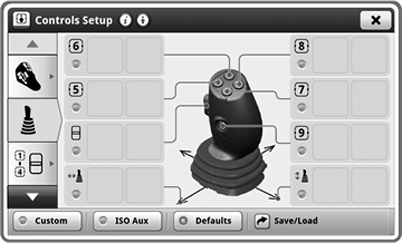

IMPORTANT: Variable functions can be assigned to the lever directions fore/aft and left/right and to the rocker switch on the multi-function lever. This assignment can be viewed only on the Controls Setup page.

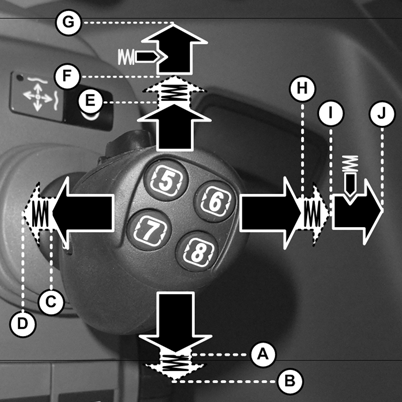

A

Pull multi-function lever rearward until the functions of the implement are performed at the desired speed. Do not move the lever beyond the point of resistance.

F

Push the multi-function lever forward until it is beyond the perceptible point of resistance (click point) and then release it.

• With SCV control:

The hydraulic cylinder of the connected implement is retracted in accordance with the preset flow time and flow rate.

• In loader mode:

The preset flow time is ignored in loader mode.

• On loaders with RTP:

Return-to-position is activated.

B

Pull the multi-function lever back until it is beyond the perceptible point of resistance (click point) and then release it.

• With SCV control:

The hydraulic cylinder of the connected implement is extended in accordance with the preset flow time and flow rate.

• In loader mode:

The preset flow time is ignored in loader mode.

• On loaders with RTP:

Return-to-position is activated.






G

Push the multi-function lever all the way forward and engage in detent to activate the float position. The lever remains in the detent until it is pulled back by hand.

C

Move multi-function lever to the left until the functions of the implement are performed at the desired speed. Do not move the lever beyond the point of resistance.

H

Move multi-function lever to the right until the functions of the implement are performed at the desired speed. Do not move the lever beyond the point of resistance.

D

Move the multi-function lever to the left until it is beyond the perceptible point of resistance (click point) and then release it.

• With SCV control:

The hydraulic cylinder of the connected implement is extended in accordance with the preset flow time and flow rate.

• In loader mode:

The preset flow time is ignored in loader mode.

In loader mode, if the multi-function lever is moved to the left twice in brief succession beyond the point of resistance (click position) and held there, the bucket shake function is activated. This function stops when the lever leaves its click position.

• On loaders with RTP:

Return-to-position is activated.

The bucket shake function is activated in the same way as in loader mode.

I

Move the multi-function lever to the right until it is beyond the perceptible point of resistance (click point) and then release it.

• With SCV control:

The hydraulic cylinder of the connected implement is retracted in accordance with the preset flow time and flow rate.

• In loader mode:

The preset flow time is ignored in loader mode.

In loader mode, if the multi-function lever is moved to the right twice in brief succession beyond the point of resistance (click position) and held there, the bucket shake function is activated. This function stops when the lever leaves its click position.

• On loaders with RTP:

Return-to-position is activated.

The bucket shake function is activated in the same way as in loader mode.

E

Push multi-function lever forward until the functions of the implement are performed at the desired speed. Do not move the lever beyond the point of resistance.

J

Move the multi-function lever all the way to the right and engage it to activate the float position. The lever remains in the detent until it is pulled back by hand.


Defaults

LX279037
LX279037-UN-05AUG16

Buttons and axes of movement on the electrical multi-function lever can be assigned different functions. The list below shows the default settings as intended ex factory.

Electrical multi-function lever

Factory setting

Movement fore and aft

Control valve XI (raise/lower boom)

Movement to right and left

Control valve XII (lift and dump bucket)

[5]

No function assigned if AutoPowr™ transmission is equipped.

[6]

Front loader, dampening, if equipped

[7]

No function assigned if AutoPowr™ transmission is equipped.

[8]

Front loader, diverter 2, if equipped

[9]

Front loader, diverter 1, if equipped
