Multi-Function Lever, Electrical — Lock Function (Transport Lock)

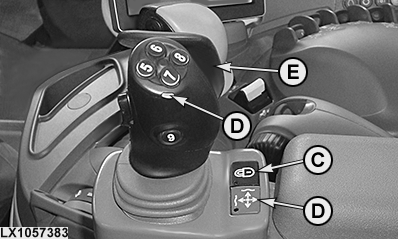

LX1057383-UN-13DEC13

Multi-Function Lever Without CommandARM™ Shown

C - Lock Button, Multi-Function Lever ON/OFF

D - Indicator Lights, Multi-Function Lever Unlocked

E - Hand Flap¹ for Enabling the Multi-Function Lever

CAUTION: Danger of accidents! If multi-function lever is not in use, always lock the multi-function lever.

Lock button (C) allows the multi-function lever and its functions to be locked or unlocked.

When indicator light on lock button (C) lights up, the multi-function lever is locked.

When indicator light (D) lights up, the multi-function lever is unlocked.

The multi-function lever remains locked each time the tractor is restarted.

Hand Flap ¹ (E) prevents an accidental actuation of the multi-function lever. The lever only functions as long as the hand flap is held open (by the hand of the operator). If the assigned SCVs do not function after the operator's hand has been placed into the hand flap, it may be because the lever was not in the center detent position when the hand flap was opened. Move the lever back to the center detent position to enable the system.

If the lever is held in neutral position for longer than 10 minutes, the hydraulic functions are locked out. To reset this lock, briefly remove hand from the hand flap. In case of malfunctions (e.g. part of system not working or operating error) the system can also be re-activated completely or partly by the procedure above.

NOTE: In cold weather, there may be brief periods when the loader does not operate. If temperature of the hydraulic oil drops below 0°C (32°F), the stepper motors of the telescopic arm/bucket/grab valves operate more slowly. At temperatures below -25°C (-13°F), they stop working altogether. Operate several front loader functions to warm up the system.
