Fuel Level and DEF Tank Level Gauges

LX1057010-UN-19APR13

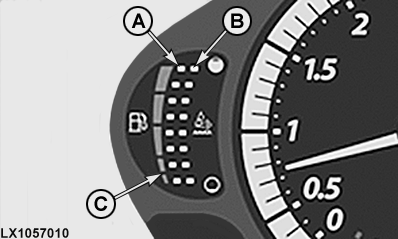

Fuel level gauge (A) and DEF level gauge (B) indicate the tank content, from full to empty (end of red zone).

NOTE: If the fuel gauge begins to flash, then the level of the fuel is in the reserve range (C).

Fill the tank!

NOTE: Never run the tank completely dry, otherwise you will have to bleed the fuel system.
