Coolant Temperature Gauge

LX1057011-UN-19APR13

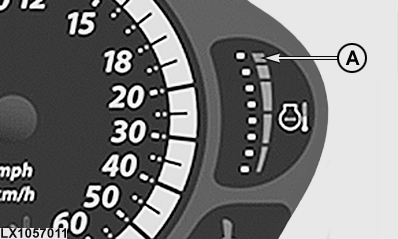

If the indicator of this instrument lights up in the red warning zone (A), the engine is overheating. Immediately reduce load or shift to a lower gear. If the gauge does not go back immediately, stop the tractor and run the engine at low idle. If that does not help, shut off the engine, determine the cause of overheating (coolant level low, dirty radiator or dirty radiator screen), and rectify.
