Other Control Systems

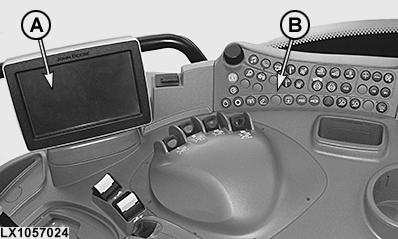

LX1057024-UN-22JAN14

On the Side Console

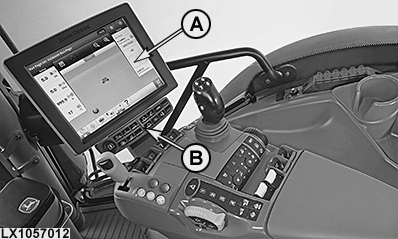

LX1057012-UN-14JUN13

With CommandArm™

A - CommandCenter™

B - CommandCenter™ Control Panel

— - GreenStar™ Monitor (Optional)

— - AutoTrac™ (Not Illustrated)

NOTE: Information on how to use CommandCenter™ and GreenStar™ can be found in Section 16; information on AutoTrac™ is provided in Section 45.
