Fuse and Relay Box (PLB) - Version II
General Information
LX1057468-UN-22AUG14
Tractors 6145R and 6155R Shown
LX216775-UN-19AUG14
LX216774-UN-19AUG14
IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.
IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.
The fuses and relays of the Power Link Box (PLB) are located behind the right access step.

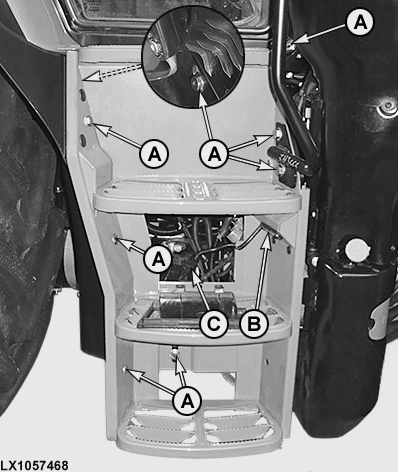

IMPORTANT: On tractors with step lighting (B), first open the cover and disconnect light connector (C) before taking off the step.
Take out attaching screws (A) and remove handrail and access step.
Take out screws (D) and lift the cover off the fuse and relay box (PLB).
Open the clips on the cover and remove the cover.

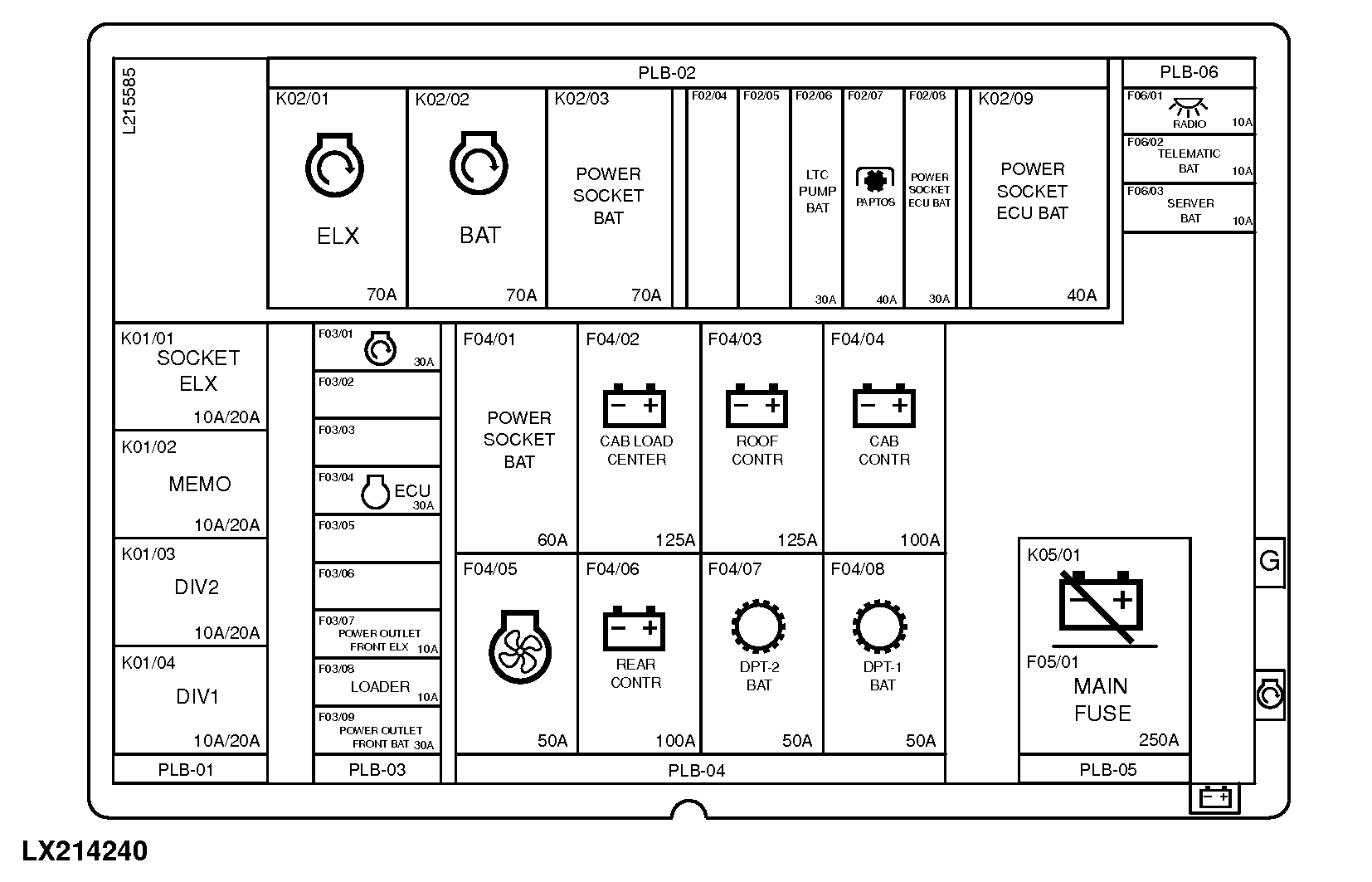

Overview of the Fuse and Relay Box (PLB) - Version II
LX214240-UN-18AUG14
Overview of the Fuse and Relay Box (PLB) - Version II
Fuses (PLB) - Version II
|
Fuse no. |
Capacity (amps) |
Consumer |
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|---|---|---|
|
F02/04_PLB |
— |
Not Used |
F04/01_PLB |
60 A |
Implement Sockets (Power Supply to Components) |
|
F02/05_PLB |
— |
Not Used |
F04/02_PLB |
125 A |
Power Supply of Fuse and Relay Box (LCS) |
|
F02/06_PLB |
— |
Not Used |
F04/03_PLB |
125 A |
Power Supply of Roof Control Unit |
|
F02/07_PLB |
40 A |
Solenoids for Rear PTO Speeds for Power-Assisted PTO Shifting (PAPTOS) |
F04/04_PLB |
100 A |
Power Supply of Cab Control Unit |
|
F02/08_PLB |
30 A |
Implement Sockets (Power Supply to Implement Control Units) |
F04/05_PLB |
50 A |
Motor for Charge Air Cooler |
|
F03/01_PLB |
30 A |
Starter (Solenoid Switch) |
F04/06_PLB |
100 A |
Power Supply of Rear Chassis Control Unit |
|
F03/02_PLB |
— |
Not Used |
F04/07_PLB |
— |
Not Used |
|
F03/03_PLB |
— |
Not Used |
F04/08_PLB |
— |
Not Used |
|
F03/04_PLB |
30 A |
Engine Control Unit |
|||
|
F03/05_PLB |
— |
Not Used |
F05/01_PLB |
250 A |
Main Fuse (Tractors without Battery Cut-Off Switch Only) |
|
F03/06_PLB |
— |
Not Used |
|||
|
F03/07_PLB |
10 A |
3-Terminal Power Outlet Socket (Front Hitch) |
F06/01_PLB |
10 A |
Radio (Fuse for Battery Power Supply (Tractors with Battery Cut-Off Switch Only)) |
|
F03/08_PLB |
10 A |
Relay for Front Loader |
F06/02_PLB |
10 A |
GreenStar, JDLink (MTG) (Fuse for Battery Power Supply (Tractors with Battery Cut-Off Switch Only)) |
|
F03/091_PLB |
30 A |
3-Terminal Power Outlet Socket (Front Hitch) |
F06/03_PLB |
10 A |
Processor 4100/4600 (Fuse for Battery Power Supply (Tractors with Battery Cut-Off Switch Only)) |
Relay (PLB) - Version II
|
Relay no. |
Rating (amps) |
Designation |
Relay no. |
Rating (amps) |
Designation |
|---|---|---|---|---|---|
|
K01/01_PLB |
10/20 amps |
Relay for 3-Terminal Power Outlet Socket (Front Hitch) |
K02/01_PLB |
70 amps |
Starter Relay 1 |
|
K01/02_PLB |
10/20 amps |
Relay for Memo Valve (Front Loader) |
K02/02_PLB |
70 amps |
Starter Relay 2 |
|
K01/03_PLB |
10/20 amps |
Relay for Control Valve 2 (Front Loader) |
K02/03_PLB |
70 amps |
Relay for Implement Sockets (Power Supply to Components) |
|
K01/04_PLB |
10/20 amps |
Relay for Control Valve 1 (Front Loader) |
K02/09_PLB |
20/40 amps |
Relay for Implement Sockets (Power Supply to Implement Control Units) |
|
K05/01_PLB |
Battery Cut-Off Relay |
|
