Mechanical Selective Control Valves - Raise Rate

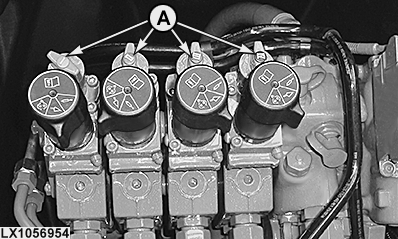

LX1056954-UN-31OCT14

Flow control valves (A) can be used to regulate the rate at which hydraulic cylinders extend and retract (raise and lower). When lowering, make sure that the SCV control lever is NOT moved to float position.

IMPORTANT: Full extension and retraction of a hydraulic cylinder should require more than 1.5 seconds. Faster retracting or extending may cause damage.
