Mechanical Selective Control Valves - Shipping Bracket

LX1045768-UN-11JAN11

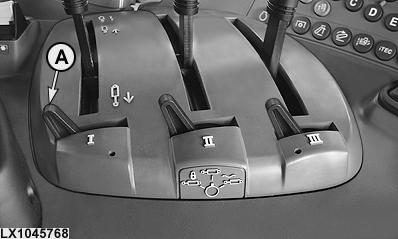

Lever (A) is used to lock the control levers for each selective control valve in neutral (shipping bracket), to release them for all functions or to lock them in float position.

IMPORTANT: Use levers (A) to lock the control levers when driving on roads and whenever the control levers are in neutral because they are not needed.
