Sockets — Overview, Cab with CommandArm™

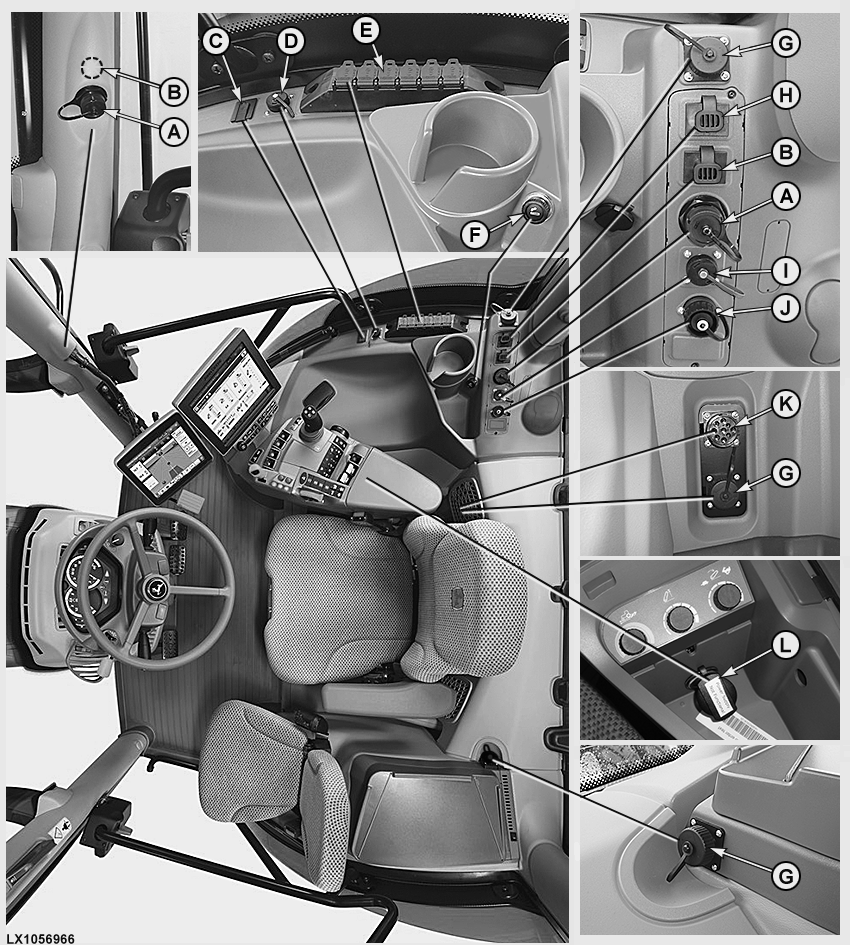

LX1056966-UN-24NOV14

Cab Shown with CommandArm™ with Optional Equipment

A — Socket for GreenStar™ Display

B — Ethernet Socket for Universal Display

C — USB Service Connection for CommandCenter™

D — Video Camera Socket

E — 3-Terminal Power Outlet Socket Strip (12 Volt), (SAE)

F — 12-Volt Socket / Cigarette Lighter

G — 3-Terminal Power Outlet Socket (12 Volt), (SAE)

H — Socket for 2nd Monitor

I — ISOBUS Socket in the Cab

J — Signal Socket According to ISO Standard 11786

K — Service Socket (CAN Bus)

L — 12-Volt Socket (max. 120 Watt)

IMPORTANT: See the following pages for further information.
