Instrument Panel and Indicator Lights — DirectDrive Transmission

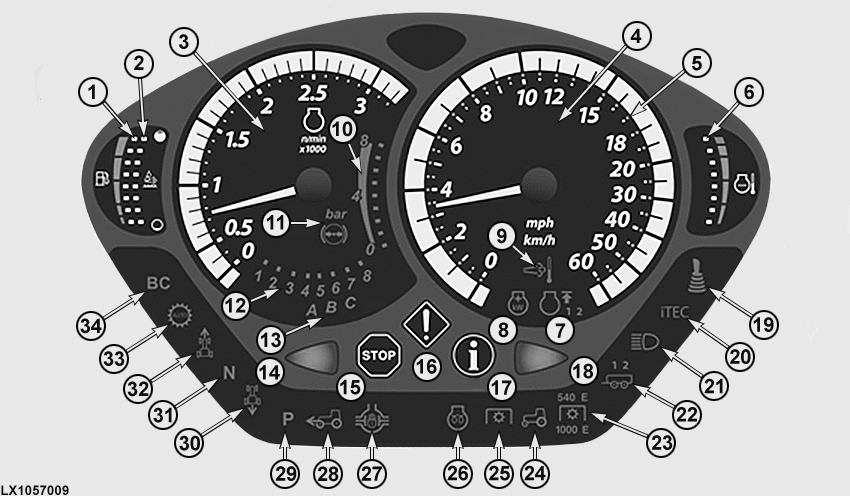

LX1057009-UN-10JUN13

1 - LED for fuel level in tank - Informs operator how much fuel is left in the tank.

2 - LED for DEF tank - Informs operator how much DEF is left in the tank.

3 - Tachometer - Indicates crankshaft speed in revolutions per minute.

4 - Speedometer - Indicates travel speed in mph or km/h.

5 - LEDs around the speedometer indicate preselected speed band.

6 - LED for coolant temperature - Monitors coolant temperature.

7 - Indicator light for FieldCruise™. The icon and the relevant figure light up when FieldCruise™ is activated at user setting 1 or 2.

8 - Indicator light for IPM (Intelligent Power Management). The icon lights up when IPM is activated.

9 - Indicator light for exhaust filter cleaning - Comes on during the cleaning phase.

10 - Indicates current air pressure in trailer air brake.¹

11 - Brake pressure warning light - Shines red until the trailer air brake has reached operating pressure. Then the icon shines white.¹

12 - Gear indicator - Figures 1-8 indicate which gear is selected.

13 - Range indicator - Letters A-C indicate which range is selected.

14 - Flashing indicator light on left - Starts flashing when turn-signal lights for left turn or hazard warning lights are switched on.

15 - Red STOP light - Flashes when a serious malfunction occurs. Shut off the engine IMMEDIATELY. Review the error message in the CommandCenter™ and eliminate the cause.

16 - Yellow CAUTION light - Flashes when a malfunction occurs (review the error message in the CommandCenter™). This light also flashes if the emergency brake is applied with the engine running and the reverse drive lever set to any position other than neutral.

17 - Blue INFO Light - Lights up when there is a fault in an electrical component associated with the hydraulic system or transmission. Review the error message in the CommandCenter™ and eliminate the cause. See your John Deere™ dealer, if necessary.

18 - Flashing Indicator Light on Right - Starts flashing when turn-signal lights for right turn or hazard warning lights are switched on.

19 - Indicator Light for ISO Aux Function - is lit when ISOBUS control is activated.

20 - iTEC™ Indicator Light - is lit when iTEC™ is switched on.

21 - High-beam indicator light - Comes on when headlights are switched on at high beam.

22 - Trailer turn-signal indicator light - Flashes if the tractor has one or two trailers. The indicator light starts flashing when turn-signal lights or hazard warning lights are switched on.

23 - Rear PTO indicator lights - Together with the light (24), they indicate the currently selected speed of the rear PTO.

24 - Comes on together with (23) or (25) to indicate whether front or rear PTO is switched on.

25 - Front PTO indicator light - Comes on together with light (24) whenever the front PTO is switched on.¹

26 - Prewarm indicator light - Comes on when the ignition switch is turned one position to the right. Do not start the engine before the light has turned off.

27 - Differential lock indicator light - Comes on when differential lock is switched on.

28 - Front-wheel drive indicator light - Comes on when front-wheel drive is switched on.

29 - Park position indicator light - Comes on whenever the reverse drive lever is in park position.

30 - Reverse travel indicator light - Comes on whenever the reverse drive lever is in reverse position.

31 - Neutral indicator light - Comes on whenever the reverse drive lever is in neutral position.

32 - Forward travel indicator light - Comes on whenever the reverse drive lever is in forward position.

33 - Indicator light for Auto transmission mode - Comes on whenever the automatic mode of the transmission is activated.

34 -Indicator light for Range BC - Comes on whenever Range BC is selected.

Bulb test: As the engine is started, all the lights (icons) should glow for about 1 second. If not, a defective LED or blown fuse may be the cause. Replace part.

NOTE: Only those lights relating to functions with which the tractor is equipped will light up.

The indicator lights go out as soon as the engine is running.

NOTE: The travel speed can be displayed in km/h or MPH. This setting can be made at the CommandCenter™. In this section, see the Units of Measurement screen in CommandCenter™ settings.
