Dimensions - Tractor 6145R, Without Front-Wheel Drive Axle

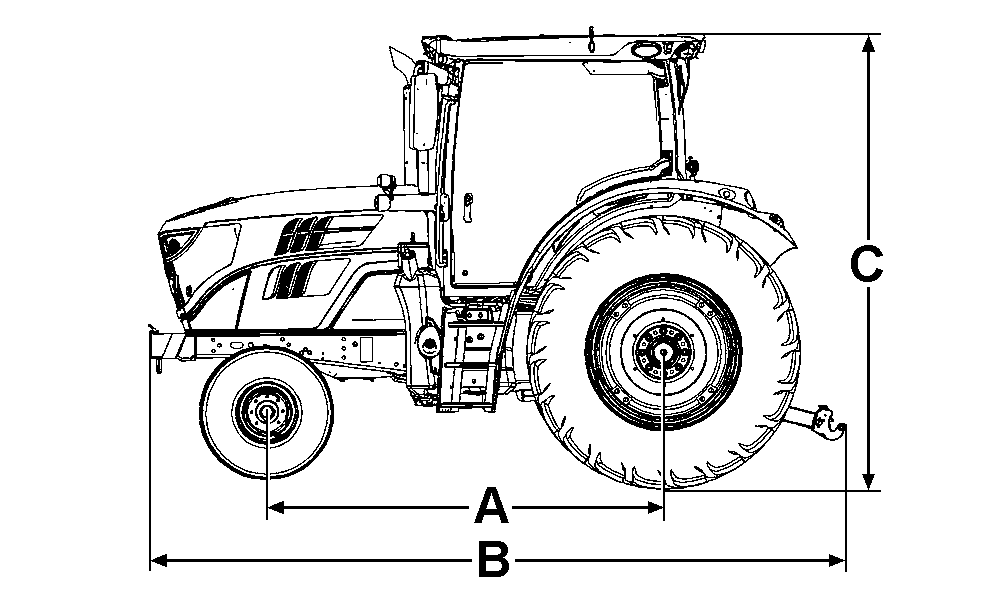

LX1057483-UN-03DEC14

LX1057484-UN-03DEC14

	6145R
A - Wheelbase..............	2765 mm	(108.9 in.)
B - Length
• Basic weight (110 kg) to draft link in horizontal position ..............	4946 mm	(194.7 in.)
• Front weight (1150 kg) to draft link in horizontal position..............	5362 mm	(211.1 in.)
C - Height
- Maximum total height from ground to cab roof (without beacon light), with rear tires with an SRI of:
• SRI 825 ..............	2926 mm	(115.2 in.)
• SRI 875 ..............	2976 mm	(117.2 in.)
D - Width
• Front axle - flange to flange ..............	1608 mm	(63.3 in.)
• Front axle - maximum tread width without extension ..............	2218 mm	(87.3 in.)
• Rear axle - flange to flange ..............	1662 mm	(65.4 in.)
• Maximum width for road travel	2550 mm	(100.4 in.)
E - Ground clearance at front axle steering knuckle
- Maximum ground clearance with front tires with an SRI of:
• SRI 450 ..............	413 mm	(16.3 in.)
• SRI 500 ..............	463 mm	(18.2 in.)
F - Front axle ground clearance
- Maximum ground clearance with front tires with an SRI of:
• SRI 450 ..............	637 mm	(25.1 in.)
• SRI 500 ..............	687 mm	(27.0 in.)
G - Ground clearance at differential housing (with drawbar)
- Maximum ground clearance with rear tires with an SRI of:
• SRI 825 ..............	373 mm	(14.7 in.)
• SRI 875 ..............	423 mm	(16.7 in.)

IMPORTANT: Ground clearance and height of the tractor are dependent on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.

All dimensions are valid for tractors whose tire combination has been selected so that the main frame is horizontally oriented.
