Back-Up Alarm (Optional Equipment)

LX1057168
LX1057168-UN-22JAN14

Side Console

LX1057169
LX1057169-UN-22JAN14

CommandARM™

LX1057170
LX1057170-UN-28AUG13

AutoPowr™ Illustrated

LX1057501
LX1057501-UN-13MAY15

If the tractor is equipped with this option and the back-up alarm is activated at button (E), an alarm signal is triggered whenever the reverse drive lever is set to reverse travel position.

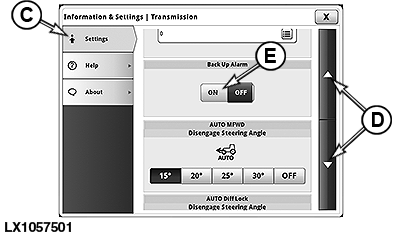

To activate or de-activate the alarm, press transmission button (A) and then actuate icon (B; advanced settings) in the first line of the transmission page.

Select tab (C) and use arrow keys (D) to select the relevant input box. Use button (E) to activate or de-activate the back-up alarm.

To save, close this page and close transmission page.

OULXA64,000370C-19-20150513
