Two-Piece Front Axle — Tread Widths for Front Wheels with Rims for 4 Positions - 6145R

LX1057502-UN-26MAY15

Two-Piece Front Axle

LX1056775-UN-14NOV12

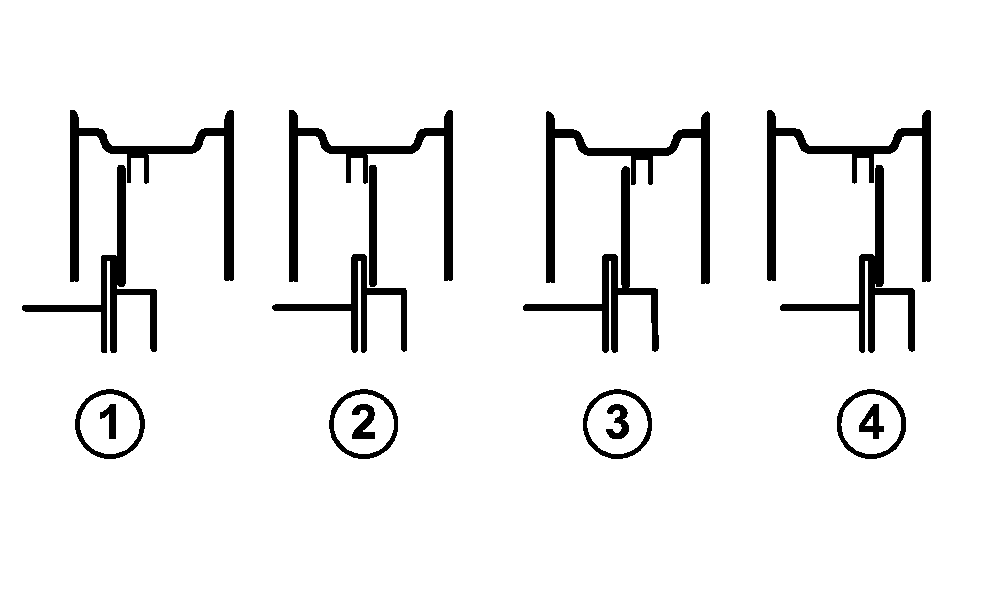

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 4 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See “Two-Piece Front Axle — Adjust the Pivoting Fenders and Steering Stop - Front Axle 745” and “Preventing Front Wheel or Fender Contact with Tractor Components” in this Section.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

		Tread width on delivery	Tread widths (front wheels) Arrangement of rim and wheel dish
Tires:			1	2	3	4
16.9R26	mm	1818	1920	1818	1716	1616
	in.	71.57	75.59	71.57	67.56	63.62
