Three-Piece Front Axle (Version 1) — Tread Widths for Front Wheels with Rims for 8 Positions - 6215R

LX1057503-UN-13MAY15

Three-Piece Front Axle

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 8 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See in this section:

1. “Three-Piece Front Axle (Version 1) — Overview of Axle Category and Axle Type”
2. “Three-Piece Front Axle (Version 1) — Adjust the Fixed Fenders and Steering Stop”
3. “Preventing Front Wheel or Fender Contact with Tractor Components”

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

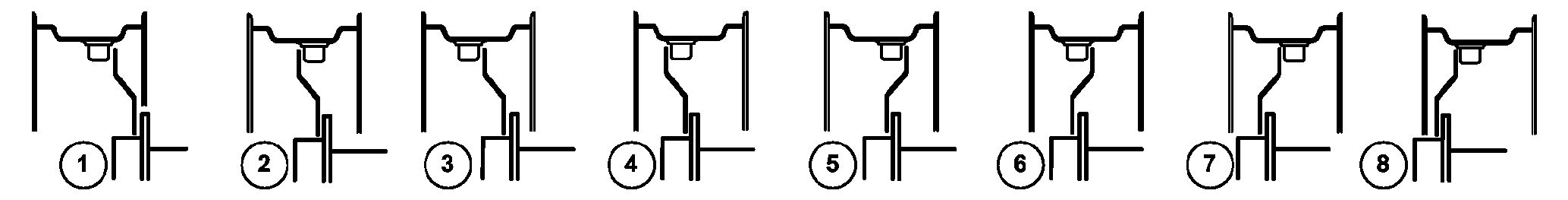

LX1056921-UN-21AUG13

		Tread widths on delivery	Three-Piece Front Axle (Version 1) – Tread Widths (Front Wheels) Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
16.9R30 -R2	mm	1886	2294	2192	2090	1988	1886	1786	1684	1582*
	in.	74.25	90.31	86.30	82.28	78.27	74.25	70.31	66.30	62.28*
380/85R34	mm	1886	2294	2192	2090	1988	1886	1786	1684	1582
	in.	74.25	90.31	86.30	82.28	78.27	74.25	70.31	66.30	62.28
420/90R30	mm	1886	2294	2192	2090	1988	1886	1786	1684	1582*
	in.	74.25	90.31	86.30	82.28	78.27	74.25	70.31	66.30	62.28*
480/70R30	mm	1886	2294	2192	2090	1988	1886	1786	1684	1582*
	in.	74.25	90.31	86.30	82.28	78.27	74.25	70.31	66.30	62.28*
480/70R34	mm	1890	2298	2190	2094	1986	1890	1782	1688*	1580*
	in.	74.41	90.47	86.22	82.44	78.19	74.41	70.16	66.46*	62.20*
600/65R28	mm	1920	2240	2138	2036	1940	1920	1838	1736	1636*
	in.	75.59	88.19	84.17	80.16	76.38	75.59	72.36	68.35	64.41*
* Tread width and adjustment of the steering stop is possible only with steering stop AL180127. See also “Three-Piece Front Axle (Version 1) — Adjust the Pivoting Fenders and Steering Stop” for the relevant front axle.
