Controls for Rapid Hydraulic Disengagement and Worklights on Front Loader (if Equipped)

CAUTION: It is not permitted to use worklights on public roads.

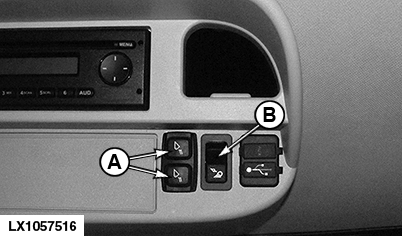

LX1057516
LX1057516-UN-11AUG15

A - Buttons for Rapid Hydraulic Disengagement

B - Worklight Switch

Press the buttons (A) for locking and unlocking when changing the front loader's implement.

NOTE: Refer to the operator's manual of the front loader for more information.

Worklights on the front loader can be switched on and off using switch (B) provided the light switch is set to position 4. See also “Lights - Worklights on Front Loader (if Equipped)” in Lights section.

OULXA64,000392E-19-20150821
