CommandARM™ — Adjust Height

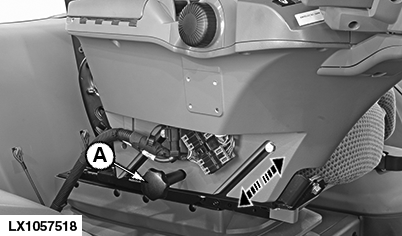

LX1057518-UN-28AUG15

CAUTION: Adjust the height of the CommandARM only when the tractor is stationary.

IMPORTANT: When adjusting the height of the CommandARM, there is a danger of accidental crushing. Objects placed in the cab may limit free space. Make sure that there is sufficient distance to adjacent components to prevent collisions. Accidental contact with the controls could cause the tractor or implement to operate.

1. Loosen knob (A).

2. Adjust the CommandARM to the desired position.

3. Tighten knob (A).
