Phone Signal Strength and Battery Charge

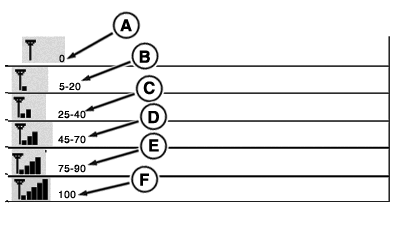

RXA0121552-UN-31OCT11

Signal Strength Display

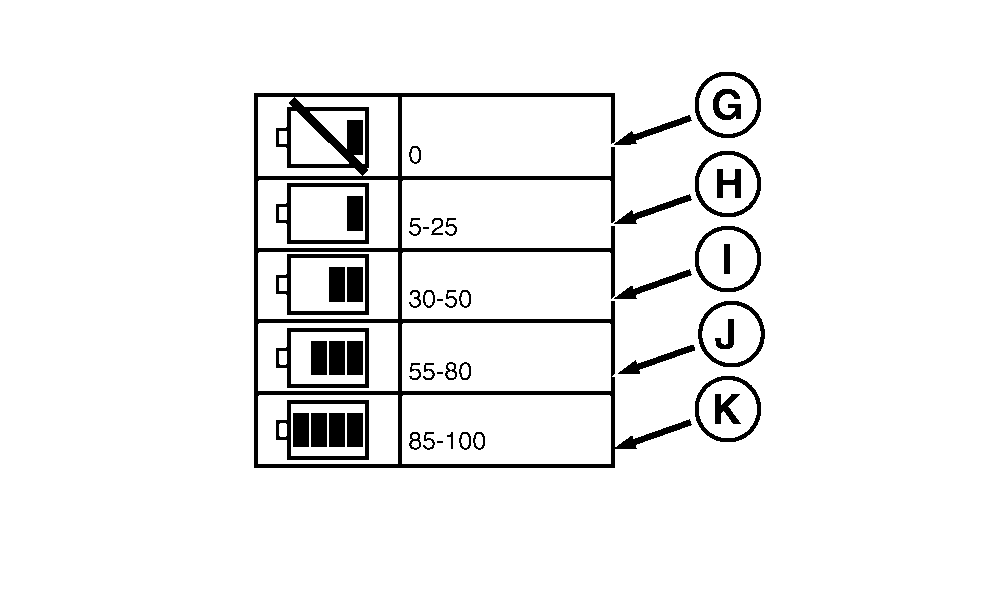

RXA0121554-UN-31OCT11

Battery Charge Displays

A - No Signal

B - 5-20 Percent Signal Strength

C - 25-40 Percent Signal Strength

D - 45-70 Percent Signal Strength

E - 75-90 Percent Signal Strength

F - 100 Percent Signal Strength

G - No Battery Charge

H - 5-25 Percent Battery Charge

I - 30-50 Percent Battery Charge

J - 55-80 Percent Battery Charge

K - 85-100 Percent Battery Charge

Cell phone signal strength is represented by phone signal strength bars (A-F). Signal strength ranges from no signal (A) to 100 percent signal strength (F).

Cell phone battery charge level is represented by phone battery charge bars (G-K). Battery charge ranges from no battery charge (G) to 85-100 percent battery charge (K)
