Three-Piece Front Axle (Version 2) — Overview of Axle Category and Axle Type

LX1057503-UN-13MAY15

Three-Piece Front Axle

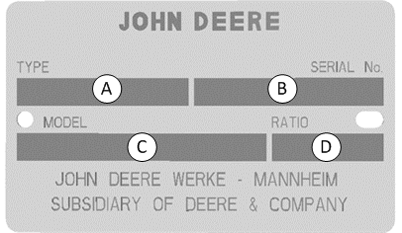

LX245281-UN-19MAY15

A - Axle Type/Design

B - Axle Serial Number

C - Spare Part Number

D - Transmission Ratio

The product identification number plate is located on the axle housing.

The axle type is stated on the product identification number plate.

Depending on version, transmission ratio and tractor model, the following axles may be installed.

Before working on the axle, check what type it is so that you can determine what category it belongs to.

Axle category	Three-piece front axle (version 2)
	750 (M50)	750 (M50HD)	755 (M60LD)	755 (M60)
Axle type/version (see type plate of front axle)	750/224	750/226	755/209	755/210
	750/225	750/227	755/260	755/261
	750/265	750/267	755/312	755/314
	750/266	750/268	755/313	755/315
	750/325	750/329	755/354	755/355
	750/326	750/330
	750/327
	750/328
