Dimensions - Tractor 6155R, With Front-Wheel Drive Axle

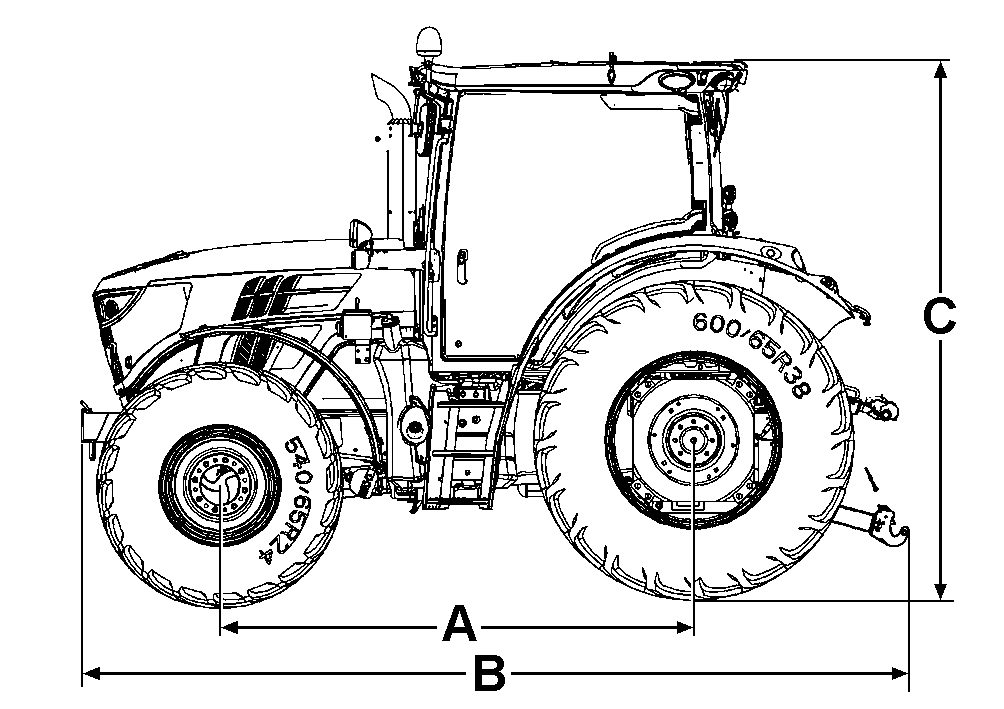

LX1057481-UN-03DEC14

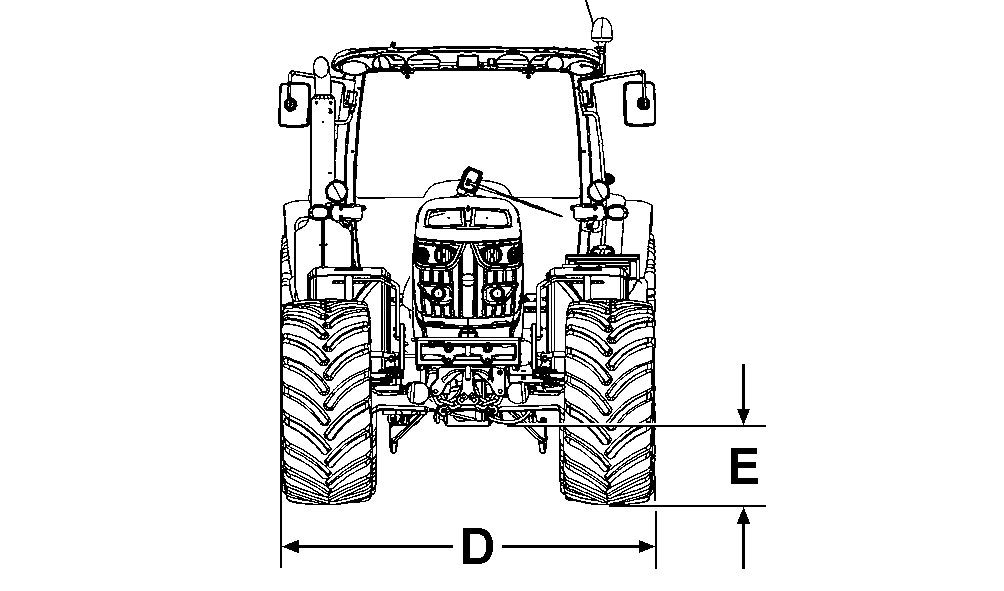

LX1057482-UN-03DEC14

	6155R
A - Wheelbase..............	2765 mm	(108.9 in.)
B - Length
• Basic weight (110 kg) to draft link in horizontal position ..............	4946 mm	(194.7 in.)
• Front weight (1150 kg) to draft link in horizontal position..............	5362 mm	(211.1 in.)
C - Height
- Maximum total height from ground to cab roof (without beacon light), with rear tires with an SRI of:
• SRI 875 ..............	2976 mm	(117.2 in.)
• SRI 925 ..............	3026 mm	(119.1 in.)
• SRI 975 ..............	3076 mm	(121.1 in.)
D - Width
• Front axle - flange to flange ..............	1780 mm	(70.1 in.)
• Front axle - maximum tread width without extension ..............	2250 mm	(88.6 in.)
• Rear axle - flange to flange ..............	1662 mm	(65.4 in.)
• Maximum width for road travel	2550 mm	(100.4 in.)
E - Ground Clearance
- Maximum ground clearance with front tires with an SRI of:
• SRI 675..............	528 mm	(20.8 in.)
• SRI 700..............	553 mm	(21.8 in.)
• SRI 700..............	578 mm	(22.8 in.)
- Maximum ground clearance with rear tires with an SRI of:
• SRI 875 ..............	423 mm	(16.7 in.)1
• SRI 925 ..............	473 mm	(18.6 in.)1
• SRI 975 ..............	523 mm	(20.6 in.)1

IMPORTANT: Ground clearance and height of the tractor are dependent on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.

All dimensions are valid for tractors whose tire combination has been selected so that the main frame is horizontally oriented.
