Dimensions - 6175R to 6215R

LX1049871-UN-26JAN11

LX1049872-UN-26JAN11

	6175R to 6215R

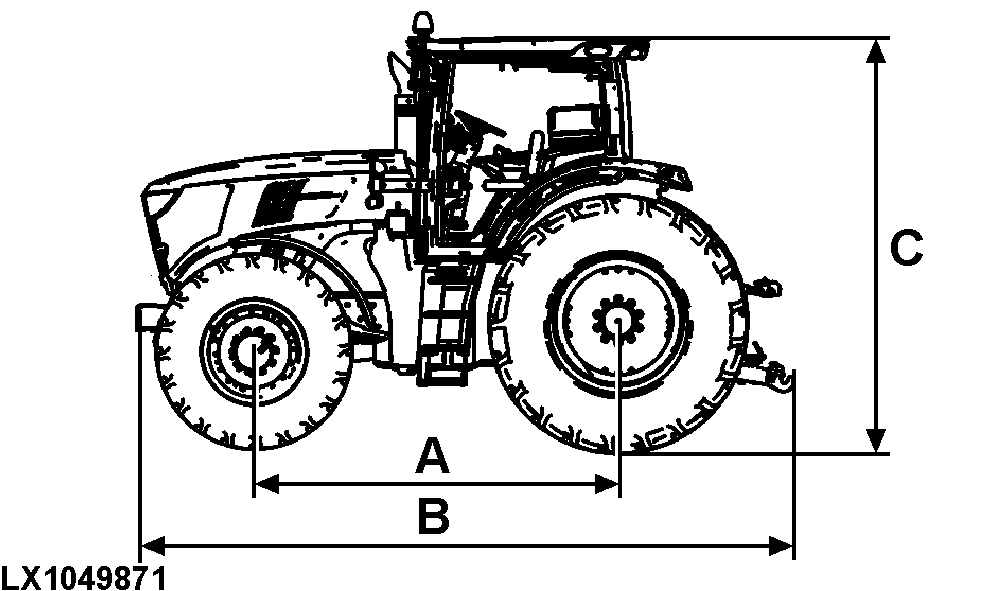

A - Wheelbase ..............	2800 mm	(110.2 in.)
B - Length
• Basic weight 110 kg to draft link in horizontal position ..............	5045 mm	(198.6 in.)
• Front weight 1150 kg to draft link in horizontal position ..............	5461 mm	(215.0 in.)
C - Height
- Maximum total height from ground to cab roof (without beacon light), with rear tires with an SRI of:
• SRI 925 ..............	3106 mm	(122.3 in.)
• SRI 975 ..............	3156 mm	(124.3 in.)
• SRI 1025 ..............	3206 mm	(126.2 in.)

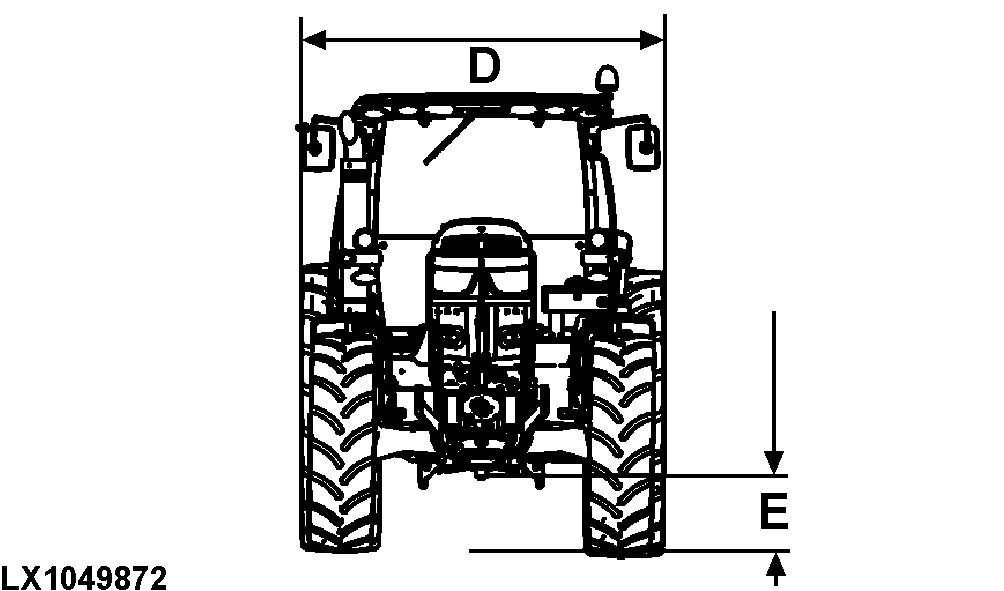

D - Width
• Front axle - flange to flange ..............	1780 mm	(70.1 in.)
• Front axle - maximum tread width without extension ..............	2250 mm	(88.6 in.)
• Rear axle - flange to flange ..............	1892 mm	(74.5 in.)
• Maximum width for road travel ..............	2550 mm	(100.4 in.)
E - Ground Clearance
- Maximum ground clearance at front-wheel drive axle, with front tires with an SRI of:
• SRI 700 ..............	545 mm	(21.5 in.)
• SRI 725 ..............	570 mm	(22.4 in.)
• SRI 750 ..............	595 mm	(23.4 in.)
• SRI 775 ..............	620 mm	(24.4 in.)
- Maximum ground clearance at differential housing with drawbar, with rear tires with an SRI of:
• SRI 925 ..............	447 mm	(17.6 in.)1
• SRI 975 ..............	497 mm	(19.6 in.)2
• SRI 1025 ..............	547 mm	(21.5 in.)2

IMPORTANT: Ground clearance and height of the tractor are dependent on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.

All dimensions are valid for tractors whose tire combination has been selected so that the main frame is horizontally oriented.
