Lubricate Tractor - Lubrication Points

LX272562-UN-08FEB16

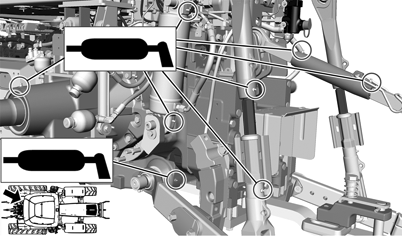

Rear Hitch with Axle and Draft Link Bearings (Variant 1)

LX272563-UN-08FEB16

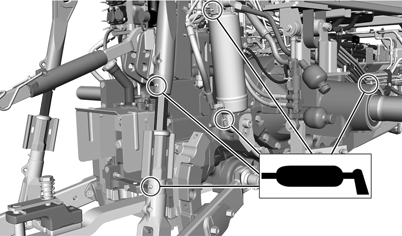

Rear Hitch, Lift Link and Lift Cylinder (Variant 2)

LX272561-UN-08FEB16

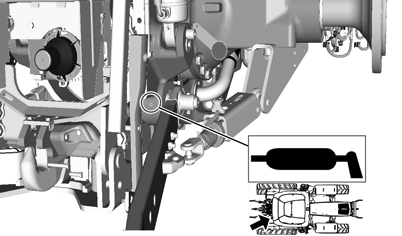

Rear Hitch with Draft Link Bearings (Variant 2)

LX272569-UN-09FEB16

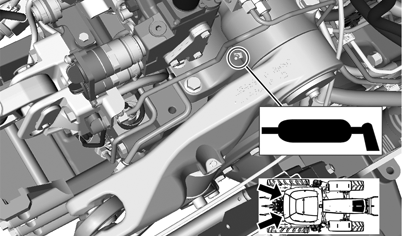

Rear Hitch, Rockshaft Block

LX272560-UN-05FEB16

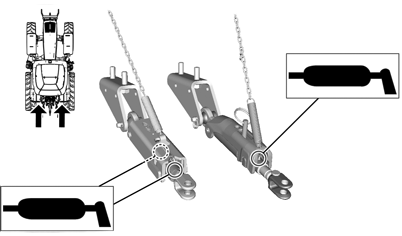

Rear Hitch, Stabilizer (2 Versions)

LX272558-UN-05FEB16

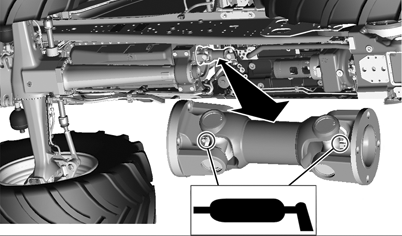

Universal-Jointed Shaft Between Engine and Transmission (If Equipped)

LX272546-UN-05FEB16

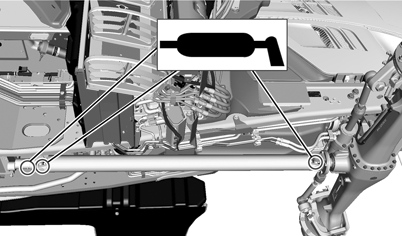

Universal-Jointed Shaft, Front-Wheel Drive Axle, without Suspension

LX272567-UN-08FEB16

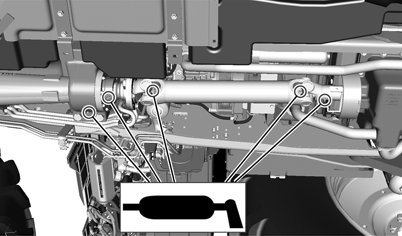

Universal-Jointed Shaft, Front-Wheel Drive Axle with Suspension

LX272564-UN-08FEB16

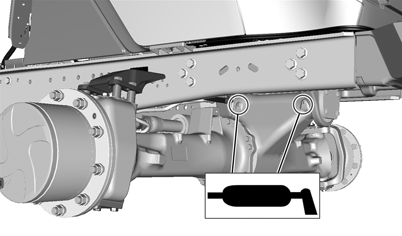

Floating Pin, Front-Wheel Drive Axle without Suspension

LX272565-UN-08FEB16

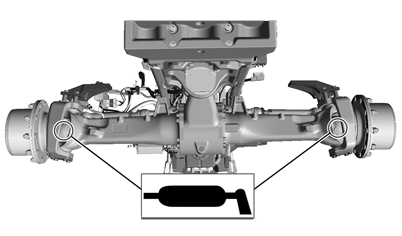

U-Joints, Front-Wheel Drive Axle without Suspension

LX272568-UN-08FEB16

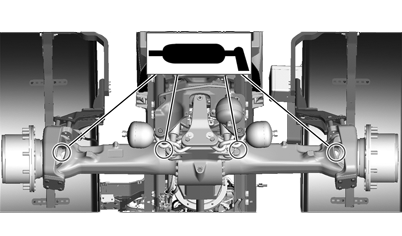

Universal Joints and Hydraulic Cylinder, Front-Wheel Drive Axle with Suspension

LX272566-UN-08FEB16

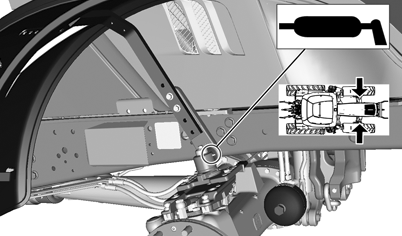

Pivoting Fenders, Only with Two-Piece Front-Wheel Drive Axle
