Adjustable Front Axle Type B - Lubricate the Grease Fittings

RW26642-UN-22OCT99

LX1053311-UN-22SEP11

LX1053312-UN-22SEP11

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

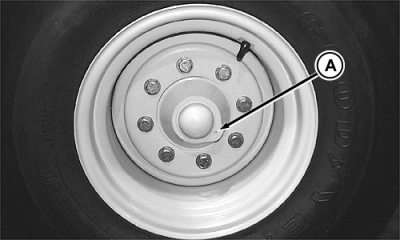

NOTE: At the wheel hub, take out stopper (A) on each end of the axle and install a grease fitting. When greasing is completed, re-install the stoppers.

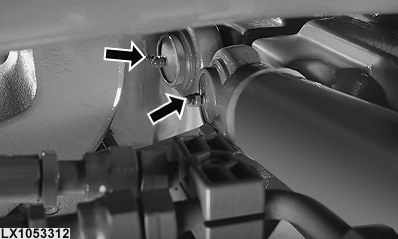

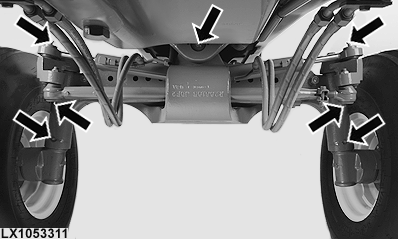

Lubricate the grease fittings on the front axle using John Deere™ multi-purpose grease.

IMPORTANT: Thoroughly clean all grease fittings prior to lubricating. Replace damaged grease fittings immediately.

NOTE: Every 1500 hours, have an authorized dealer clean the wheel hubs and apply new grease.
