Front Jaw Hitch

LX1049876-UN-07FEB11

LX1049877-UN-08FEB11

Front Weights

LX1049878-UN-07FEB11

Pick-up Weight

Hitch jaws are integrated into the front end of the tractor to allow the tractor to be maneuvered and towed on metalled road surfaces.

The hitch jaws are located on the following components:

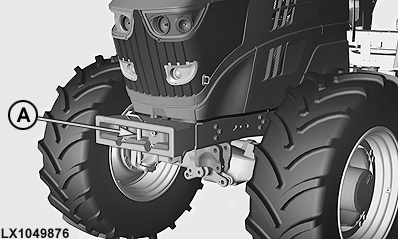

• Basic Weight (A)

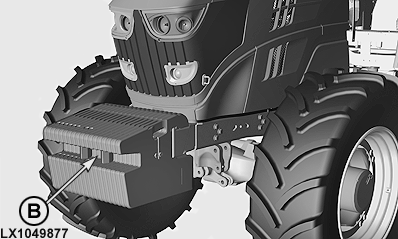

• Additional Weights (B)

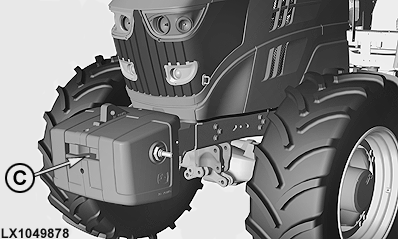

• Pick-Up Weight (C)

CAUTION: The methods of hitching shown here may be used for maneuvering and towing on metalled road surfaces only. Before the tractor is towed by the hitch jaws, remove any trailers or mounted implements.

Never use a tow-rope; always use an approved towbar.
