Selective Control Valves, Mechanical - Control Levers (Side Console)

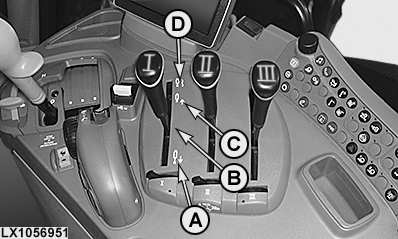

LX1056951-UN-31OCT14

Control Lever, Selective Control Valves I to III

I - Control Lever, SCV I

II - Control Lever, SCV II

III - Control Lever, SCV III

A - Extend

B - Neutral Position

C - Retract

D - Float Position

CAUTION: To avoid personal injury, make sure that hoses are not reversed. If hoses are reversed, cylinder extends when it should retract.

IMPORTANT: Lock the selective control valves against unintended actuation when driving on roads and whenever the SCV control levers are in neutral because they are not needed. See also “Selective Control Valves, Mechanical - Shipping Bracket” on the following pages.

The following description refers to selective control valves with deactivated lock function:

The SCV control levers may be moved into 4 positions.

A — Extend (detent position)
If the lever is moved to the extend detent position and released, the lever returns to neutral position only when the hydraulic cylinder has been extended. The hydraulic cylinder is held in position.

A/B — Position between neutral and extend detent position
If the lever is moved between neutral and extend detent, the cylinder will be extended slowly. The further the lever is moved to the detent position, the faster the hydraulic cylinder is extended. If the lever is released, the lever returns to neutral and the hydraulic cylinder is held in position.

B — Neutral position (between retract and extend)
In neutral position, the hydraulic cylinder is held in position.

B/C — Position between neutral and retract detent position
If the lever is moved between neutral and retract detent, the cylinder will be retracted slowly. The further the lever is moved to the detent position, the faster the hydraulic cylinder is retracted. If the lever is released, the lever returns to neutral and the hydraulic cylinder is held in position.

C — Retract (detent position)
If the lever is moved to the retract detent position and released, the lever returns to neutral position only when the hydraulic cylinder has been retracted. The hydraulic cylinder is held in position.

D — Float position (detent position)
If the lever is moved beyond the retract detent position and detented in the float position, the piston of the hydraulic cylinder can move freely and the attached implement can follow the ground contour.

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.

NOTE: To release hydraulic pressure in the implement, move the lever to float position (D) while engine is running.
