Mechanical Selective Control Valves (SCV) - Controls

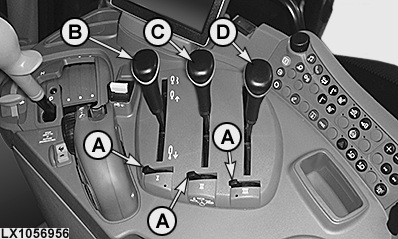

LX1056956-UN-04NOV14

A - Lever for Blocking the Control Lever

B - Control Lever for Selective Control Valve, SCV I

C - Control Lever for Selective Control Valve, SCV II

D - Control Lever for Selective Control Valve, SCV III

For more information, see “Additional Equipment - Hydraulic System” Section.
