Rear Drop Axle (if Equipped) - Change Oil

1.

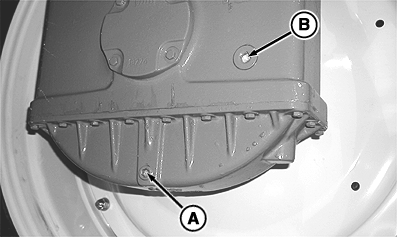

   RXA0065563-UN-17FEB03

   A - Drain Screw

   B - Filler Screw

   Remove drain screw (A) and drain oil into a suitable container.

---




2. Re-install and tighten drain screw (A).

3. Take out filler screw (B) and add transmission/hydraulic oil until the oil is level with the hole.

   The following oils are preferred:

   • John Deere GL-5 TRANSMISSION OIL



   Other oils may be used if they meet the following specification:

   • API Service Category GL-5



4. Install filler screw (B) and tighten to 150 Nm (110 lb.-ft.).
