Jack Up the Tractor - Lifting Points

The illustrations show the recommended lifting points for jacking up the tractor. Use a stable jack with sufficient lifting force. See Specifications, Loads and Weights in Section 145.

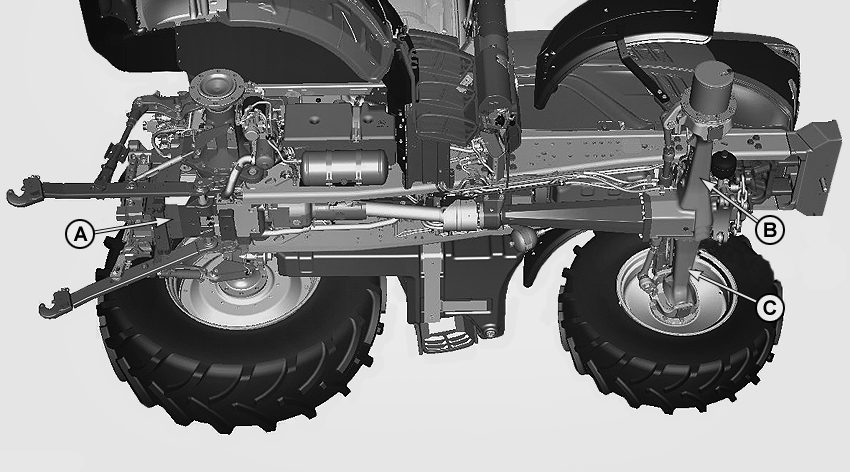

LX1057721-UN-15JUN12

A - Raise Rear of Tractor, e.g. to Remove Rear Wheels

B - Raise Right End of Axle, e.g. to Remove Right Front Wheel

C - Raise Left End of Axle, e.g. to Remove Left Front Wheel

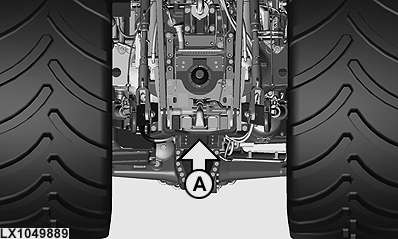

LX1049889-UN-11FEB11

With Pick-up Hitch

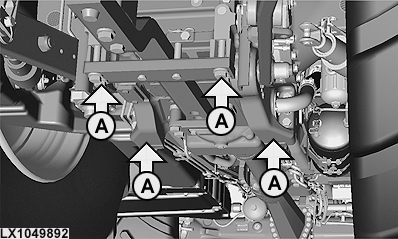

LX1049892-UN-11FEB11

Without Pick-up Hitch

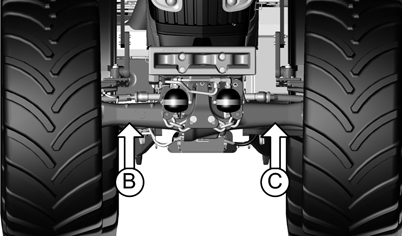

LX1057720-UN-15JUN12

Raise Axle to Change Front Wheel

B - Raise Right End of Axle to Remove Right Front Wheel

C - Raise Left End of Axle to Remove Left Front Wheel

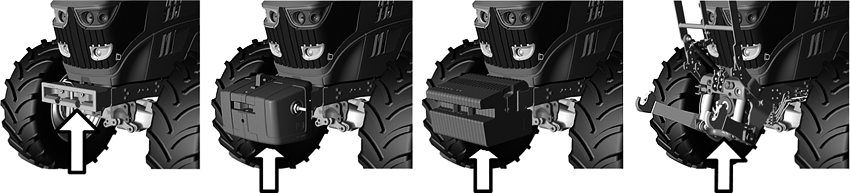

LX1057719-UN-15JUN12

Raise Front Center of Tractor (Depending on How Tractor is Equipped)

CAUTION:

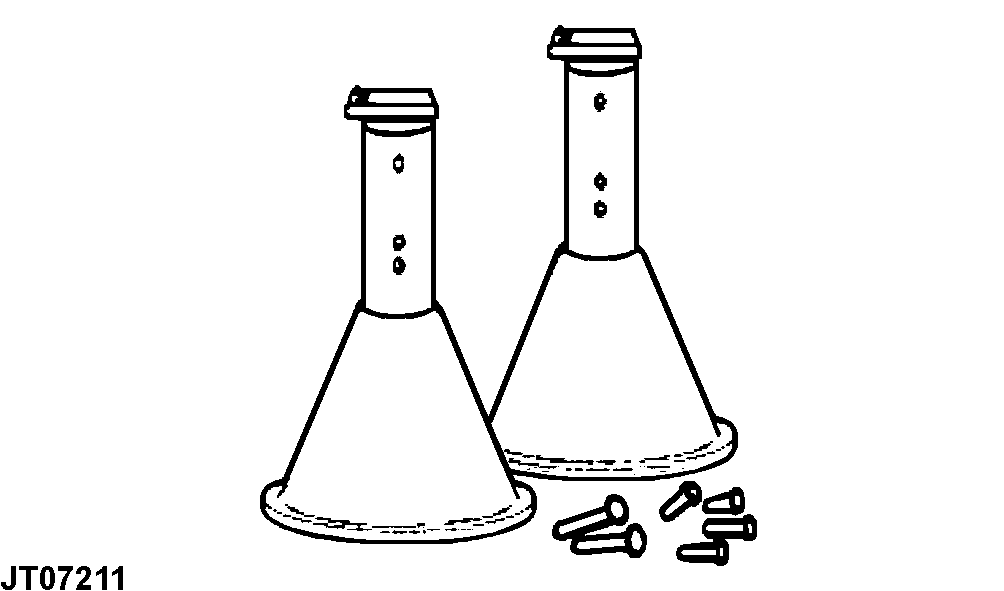

JT07211-UN-14DEC06

JT02043 and JT02044 Support Stands

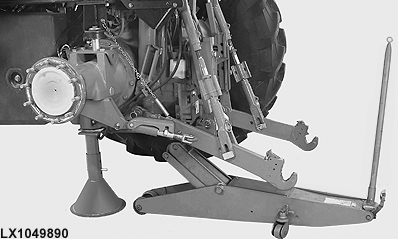

LX1049890-UN-11FEB11

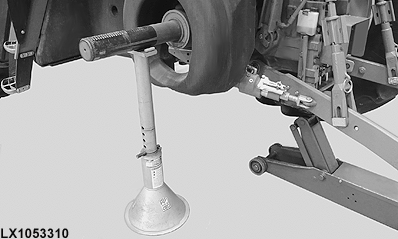

LX1053310-UN-23SEP11

Example

JT02043 - Support Stand, 482 to 736 mm (19 to 29 in.)

JT02044 - Support Stand, 863 to 1117 mm (34 to 44 in.)

Jack up tractor on firm, level ground only.

Before doing any further work on the tractor, first secure it using suitable jack stands. The special John Deere tools shown can be used for this purpose. These jack stands can be obtained from your authorized dealer.
