Access the Engine Menu

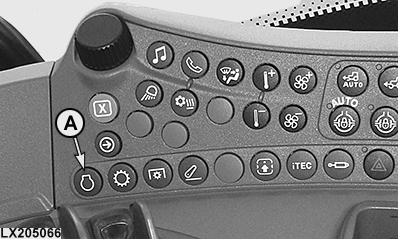

LX205066-UN-22JAN14

Tractors without CommandArm™

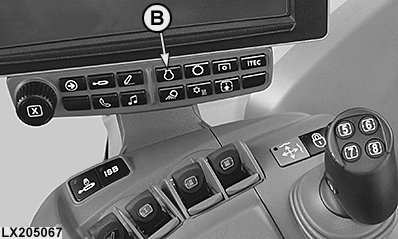

LX205067-UN-22JAN14

Tractors with CommandArm™

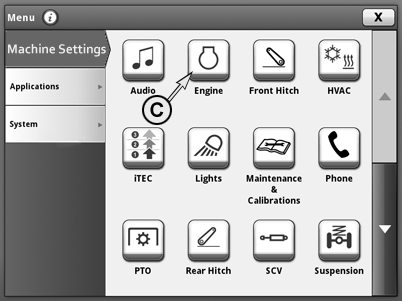

LX1057489-UN-05DEC14

CommandCenter™

A - Access Engine Menu - Tractors without CommandARM™

B - Access Engine Menu - Tractors with CommandARM™

C - Access Engine Menu from CommandCenter™ Main Page

Use one of the hotkeys (A) or (B) to access the engine menu. Alternatively, go to the main page of the CommandCenter™ main page, select “Tractor Settings” and then press softkey (C).
