DEF (Diesel Exhaust Fluid) Level Gauge

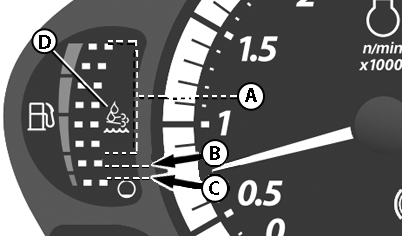

LX205074-UN-10SEP13

A - Normal DEF Level

B - Low DEF Level 1

C - Low DEF Level 2

D - DEF Symbol

IMPORTANT: It is unlawful to tamper with or remove any component of the aftertreatment system. It is also unlawful to use Diesel Exhaust Fluid (DEF) that does not meet the specifications provided.

IMPORTANT: Using incorrect or unapproved replacement parts can cause damage to vehicle's aftertreatment system and impair its proper functioning. When repairing the exhaust system, never interchange aftertreatment components between Interim Tier 4/Stage III B and Final Tier 4/Stage IV equipped vehicles.

NOTE: SCR system monitors the quality of the DEF. If an incorrect urea concentration is detected in the DEF, system will display a diagnostic trouble code.

The SCR exhaust aftertreatment process is a system that uses DEF (Diesel Exhaust Fluid) and other components in the exhaust cleaning system to reduce exhaust emissions.

Tractor electronic systems monitor DEF level to assure proper performance. The operator is informed by indicator lights and diagnostic trouble codes when the DEF level becomes critical. To maintain unrestricted tractor performance, it is recommended practice to fill up the DEF tank every time the tractor is refueled. See “Filling the DEF Tank” in the “Operating the Engine” section in this operator's manual.

For more information, see “Fuel, Lubricants, Hydraulic Oil and Coolant” section in this operator's manaul.

Normal DEF level:

When DEF level is within this range (A), the DEF symbol (D) is on and the tractor operates normally. Always try to keep the level within this range.

Low DEF level 1:

When DEF level drops below 10% (B), the lowest bar of the DEF level gauge flashes and a diagnostic trouble code is displayed. This has no effect on tractor operation, but it is urgently recommended that the DEF tank be refilled.

Low DEF level 2:

When DEF level approaches zero (C), DEF symbol (D) flashes also. Engine power is reduced and a diagnostic trouble code is displayed. The DEF tank must be refilled to make tractor operate normally again.

DEF at low temperatures:

DEF freezes at approx. -11°C (12°F). At this temperature and colder, DEF is not available for the exhaust aftertreatment system. The tractor's systems detect that the temperature is too low and permit the engine to operate despite the lack of fluid DEF. This condition is signaled by a diagnostic trouble code.

To thaw the DEF, heat is fed into DEF tank from the engine cooling system. Once the DEF has thawed, the SCR system functions as normal. However, if the DEF does not thaw within 40 minutes, another diagnostic trouble code is displayed and engine power is reduced.

NOTE: The quality of the DEF is not degraded by freezing and thawing.

If desired, a lockable cap can be ordered for the DEF tank as a John Deere™ accessory.

* DEF (Diesel Exhaust Fluid) = A urea-based fluid used in exhaust aftertreatment systems.
