RTP - Operating the Boom

LX211120-UN-19MAY14

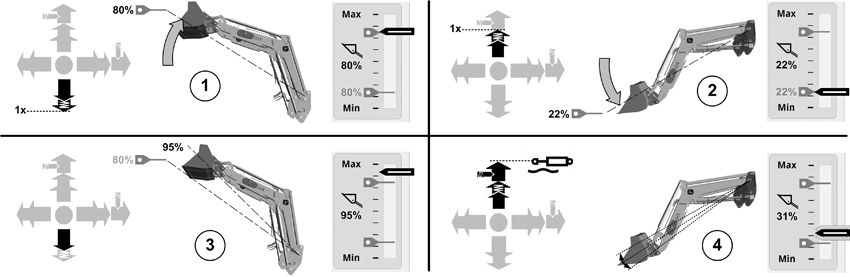

1. Return-to-position, top position - Move lever back beyond the point of resistance.
2. Return-to-position, bottom position - Move lever forward beyond the point of resistance.
3. Raise boom above top preset position - Pull lever back without passing the point of resistance.
4. Float position - Engage lever in forward detent.

To stop a movement: Move lever briefly in opposite direction, and release.

NOTE: Automatic return-to-position in the downward direction can be initiated only if the starting point is above the bottom preset position. Automatic return-to-position in the upward direction can be initiated only if the starting point is below the top preset position.

The operator must keep his hand on the multi-function lever while the front loader is in operation (European version only).
