RTP - Operating the Bucket

LX211121-UN-19MAY14

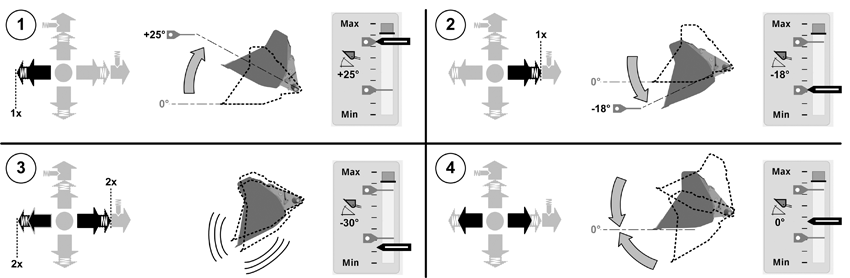

1. Return-to-position, top position - Move lever to the left beyond the point of resistance.
2. Return-to-position, bottom position - Move lever to the right beyond the point of resistance.
3. Additional “shake” function - Move the lever to the right or left twice in brief succession beyond the point of resistance and hold it there.
4. Move bucket to zero position - Move the lever to right or left (without passing the point of resistance), until 0° appears on the display. NOTE: The bucket must always be moved manually until 0° appears on the display.


   To stop a movement: Move lever briefly in opposite direction, and release.

   NOTE: Automatic return-to-position in the downward direction can be initiated only if the starting point is above the bottom preset position. Automatic return-to-position in the upward direction can be initiated only if the starting point is below the top preset position.

   The operator must keep his hand on the multi-function lever while the front loader is in operation (European version only).




5.
   LX211129-UN-19MAY14

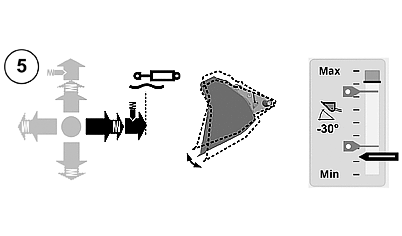

   Float position - Engage lever in right detent.

---
