RTP - Setting the Responsiveness

LX211132
LX211132-UN-14MAY14

The reactions of the boom and bucket movements to commands from the multi-function lever can be changed by altering the SCV throughflow (SCVs 11 and 12) and by altering the characteristics of the multi-function lever. This affects how the front loader responds if a return-to-position function is equipped.

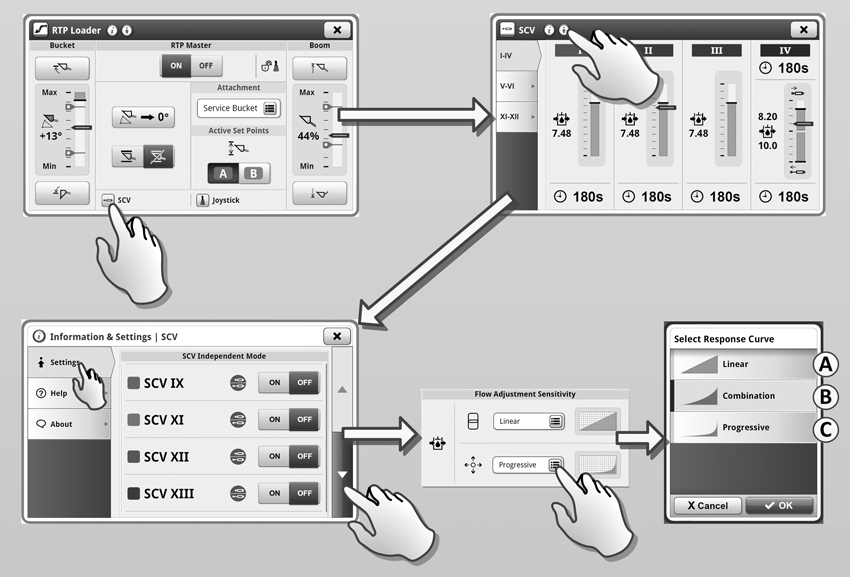

Navigate to Settings as shown in the graphic.

Select desired characteristic:

A - Linear = Speed remains constant until final position is reached (abrupt stop).
B - Combination = Speed drops off just before final position is reached.
C - Progressive = Speed drops off gradually as final position is reached (very gentle stop).

Confirm setting with the OK button.

NOTE: See also text concerning Selective Control Valves and Multi-Function Lever in the "Additional Equipment — Hydraulic System” section.
