RTP - Preparing the Multi-Function Lever

Assigning Axes of Movement

IMPORTANT: This is an example of how the two axes of movement on the multi-function lever can be assigned to control a front loader. Other settings can be made; they are outlined at “Multi-Function Lever, Electrical”.

Recommended Settings for Axes of Movement on Multi-Function Lever

Multi-Function Lever:	Function:	Selective Control Valve:
Forward	Boom down	SCV XI
Back	Boom up	SCV XI
To right	Bucket down	SCV XII
To left	Bucket up	SCV XII

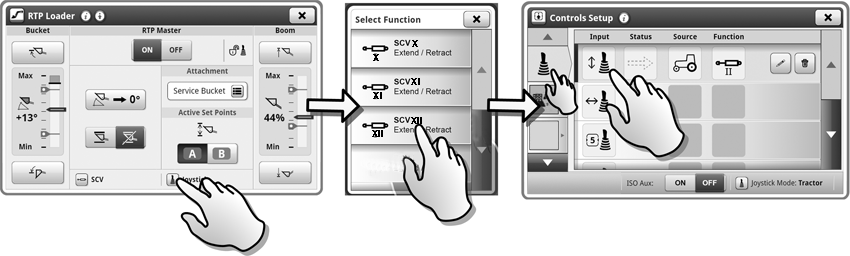

LX211133-UN-22JUL14

Assign a Function to an Axis of Movement

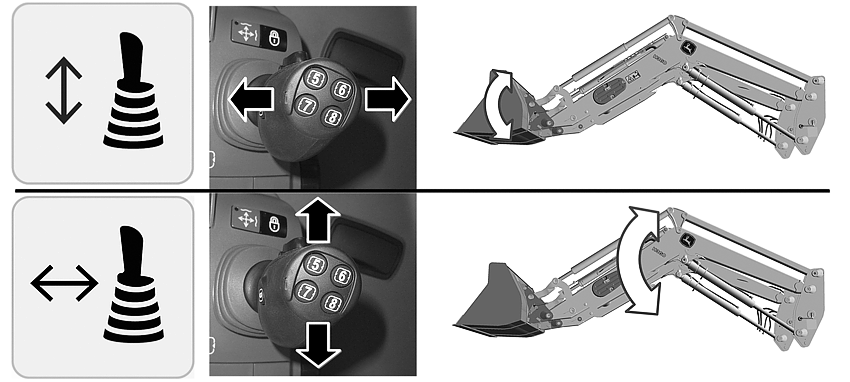

When assigning a function, pay attention to the meaning of the icons (see illustration).

LX211134-UN-20MAY14

Meaning of Icons
