Replace Bulb on Beacon Light

TS249
TS249-UN-23AUG88

CAUTION: To perform service jobs at inaccessible locations, it is essential to use scaffolding, platforms or safety ladders.

It is NOT permitted to perform these jobs by climbing on tractor components that are not intended for that purpose. There is a particularly acute danger of falling if the tractor components are wet, dirty or iced over.

  1. REMOVAL:

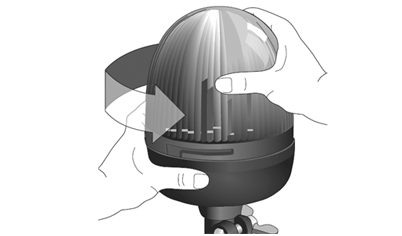

    LX275159
    LX275159-UN-03MAR16

    Open the light.

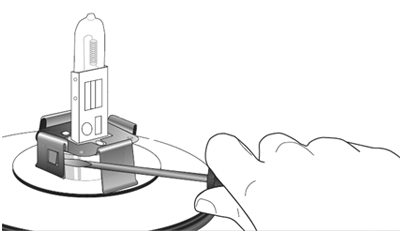

  2. LX275160
    LX275160-UN-03MAR16

    Disengage the retaining clamp.

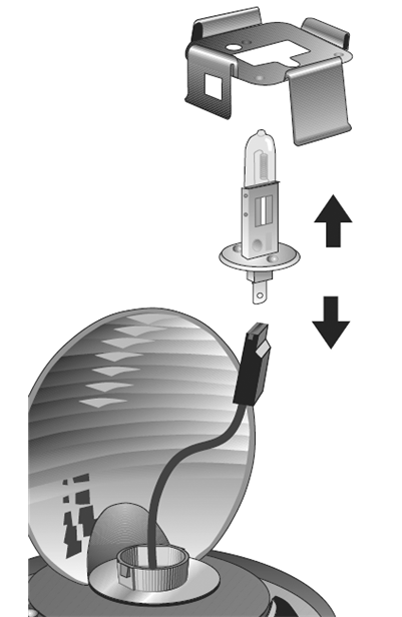

  3. LX275161
    LX275161-UN-03MAR16

    Remove the bulb.


  4. INSTALLATION:

    LX275162
    LX275162-UN-03MAR16

    Connect the new bulb to the cable and insert the base of the bulb into the socket. Care must be taken to ensure that contours of the base and socket are aligned.

    Bulb: H1 - 12V, 55W (8GH 002 089-131)

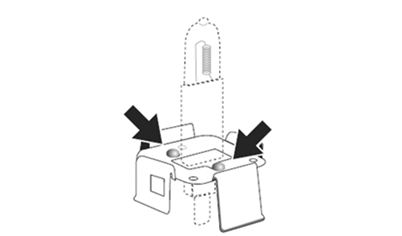

  5. LX275163
    LX275163-UN-03MAR16

    Put on the retaining clip and align it so that the pins on the base fit into the recesses in the retaining clip.

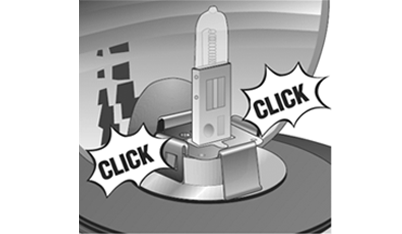

  6. LX275164
    LX275164-UN-03MAR16

    Press the retaining clip down onto the socket until it engages.

    Then close the beacon light.


NOTE:

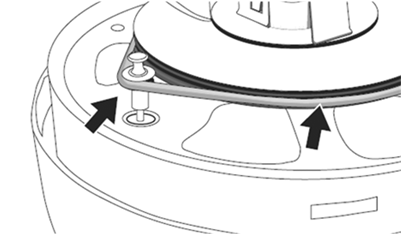

LX275165
LX275165-UN-03MAR16

If the drive belt has slipped off, it must be re-installed as shown.

IMPORTANT: Check that the drive belt is installed correctly. The prescribed speed of rotation can only be achieved if the drive belt is installed as shown. The arrangement shown is valid if supply voltage is 12V.

IMPORTANT: Do NOT lubricate the moving parts of the beacon light.
